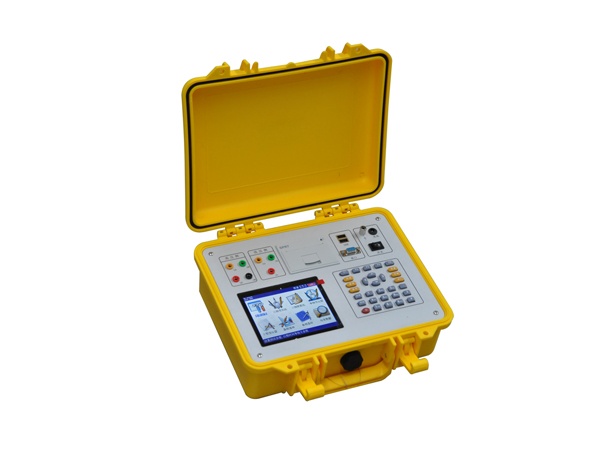

HV HIPOT GDB-P Three Phase Transformer Turns Ratio Tester

Specification

1. TTR measurement range: 0.8~10000.

2. High measurement speed: three-phase test can be completed within 60 seconds.

3. Measurement accuracy:

- Voltage measurement accuracy on HV side: 0.05%

- Voltage measurement accuracy on LV side: 0.1%

- Phase angle measurement accuracy: 0.1°

- TTR measurement accuracy: 0.1%(0.8－3000); 0.2%(3000－10000)

4. Volume: 320mm*240mm*130mm.

5. Weight: 3Kg.
