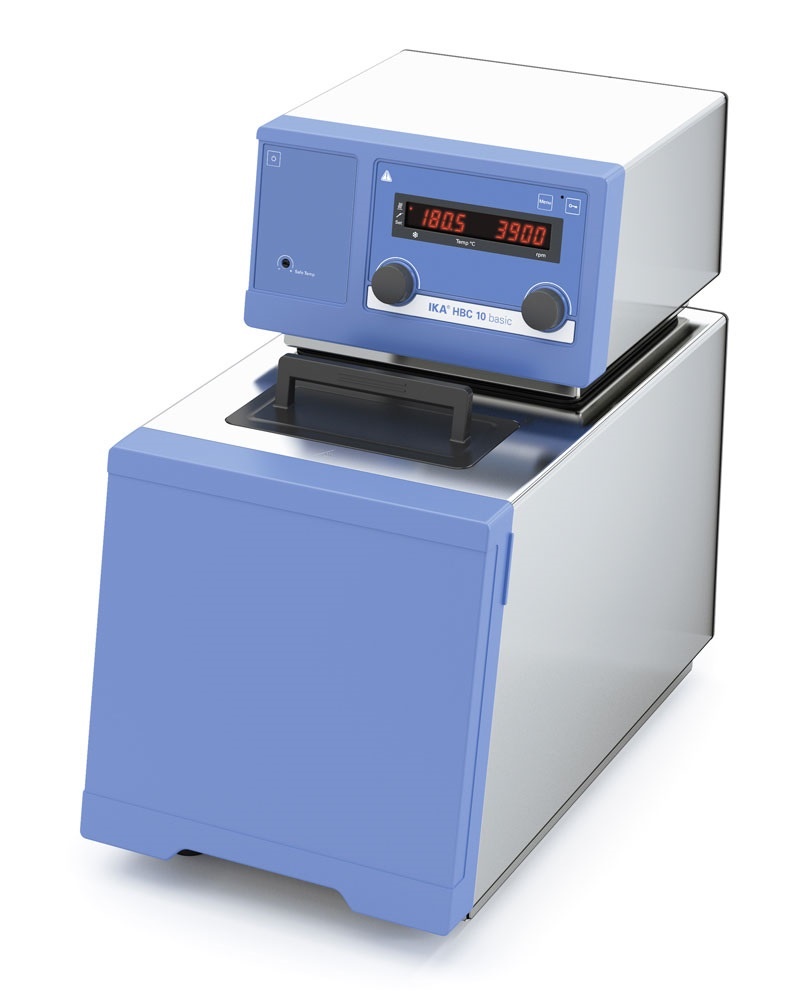

Appliance type: Circulation thermostat
Class designation acc. DIN 12876: III
Identification according to DIN 12876: FL
Heat output: 2500 W
Working temperature: room temp. +10K @1000rpm - 250 °C
Operating temperature min. (with external cooling): -20 °C
Temperature display: yes
Temperature control: PT 100
Working temperature sensor: PT 100
Safety temperature sensor: PT1000
Working temperature display: LED
Safety temperature display: LED
Temperature stability DIN 12876: 0.02 ±K
Connection for ext. temperature sensor: PT 100
Display resolution: 0.1 K
Display for operation with ext. sensor: yes
Set temperature resolution: 0.1 ±K
Warning function optical: yes
Warning function acoustic: yes
Warning function excess temperature: yes
Adjustable safety circuit: 0 - 260 °C
Sub-level protection: yes
Over-level protection: yes
Filling volume: 8 - 11 l
Pump type: Pressure- / suction pump
Pump capacity adjustable: yes
Pump pressure max. (0 liters discharge flow): 0.61 bar
Pressure pump (suction side) (0 liter flow): 0.45 bar
Flow rate max. (0 bar back pressure): 31 l/min
Pump connection: M16x1
Cooling coil connection: NW 8
Bath depth min.: 150 mm
Calibration option: yes
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Dimensions (W x H x D):275 x 456 x 500 mm
Weight: 18 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: yes
Voltage: 230 / 100 - 115 V
Frequency: 50/60 Hz
Power input: 2650 W
