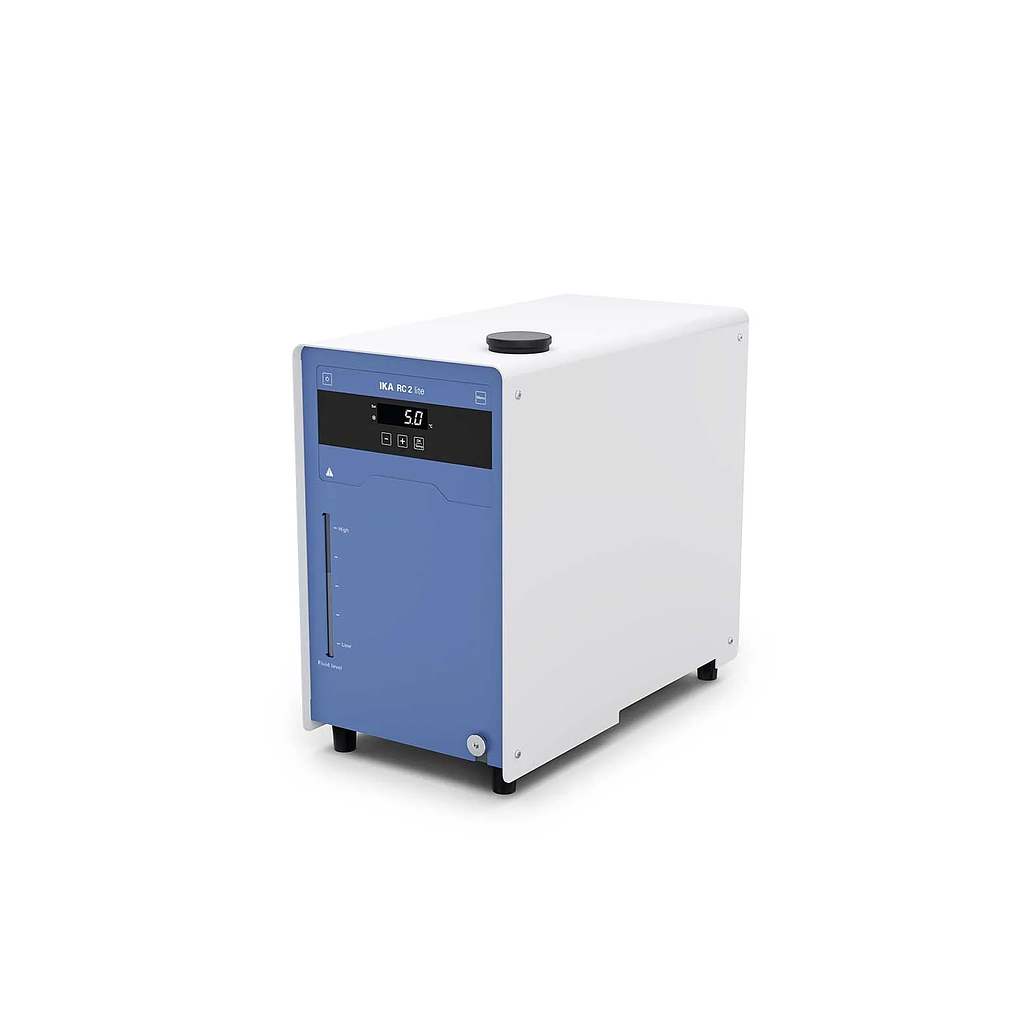

IKA RC 2 lite Compact Recirculating Chiller

Cooling agent pressure max.: 21 bar

Cooling capacity (@20°C): 400 W

Cooling capacity (@10°C): 350 W

Cooling capacity (@0°C): 250 W

Cooling capacity (@-10°C): 140 W

Working temperature: -10 - room temp. °C

Operating temperature min.: -10 °C

Operating temperature max. (with external heating):70 °C

Temperature display: yes

Temperature control: PID

Working temperature sensor: PT1000

Working temperature display: LED

Temperature stability DIN 12876: ±0.5 K

Display resolution: 0.1 K

Set temperature resolution: ±0.1 K

Filling volume: 1 - 3.5 l

Pump type: Pressure- / suction pump

Pump pressure max. (0 liters discharge flow): 0.35 bar

Pressure pump (suction side) (0 liter flow): 0.15 bar

Flow rate max. (0 bar back pressure): 18 l/min

Pump connection: M16x1

Permissible ON time: 100 %

Noise level: 51 dB(A)

Dimensions (W x H x D): 225 x 385 x 430 mm

Weight: 24.5 kg

Permissible ambient temperature: 5 - 32 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

RS 232 interface: yes

USB interface: yes

Voltage: 230 V

Frequency: 50/60 Hz

Power input: 250 W
