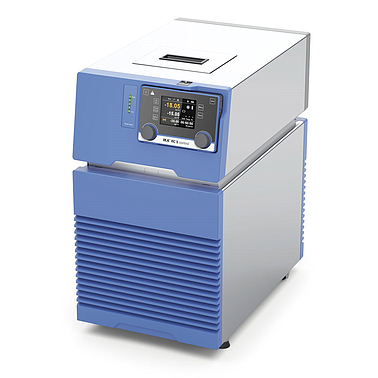

Appliance type: Recirculating chiller
Cooling agent: R290
Cooling agent quantity: 90 g
Cooling agent pressure max.: 21 bar
Cooling capacity (@20°C): 1400 W
Cooling capacity (@10°C): 1200 W
Cooling capacity (@0°C): 950 W
Cooling capacity (@-10°C): 650 W
Cooling capacity (@-20°C): 450 W
Cooling capacity (@-30°C): 200 W
Working temperature: -30 - room temp. °C
Operating temperature min.: -30 °C
Operating temperature max. (with external heating): 80 °C
Temperature display: yes
Temperature control: PT 100
Working temperature sensor: PT 100
Working temperature display: TFT
Temperature stability DIN 12876: 0.1 ±K
Display resolution: 0.01 K
Display for operation with ext. sensor: yes
Warning function optical: yes
Warning function acoustic: yes
Warning function excess temperature: yes
Sub-level protection: yes
Filling volume: 5.0 - 7.0 l
Pump type: Pressure pump
Pump capacity adjustable: yes
Pump pressure max. (0 liters discharge flow): 0.61 bar
Pressure pump (suction side) (0 liter flow): 0.45 bar
Flow rate max. (0 bar back pressure): 31 l/min
Pump connection: M16x1
Calibration option: yes
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Dimensions (W x H x D):310 x 546 x 490 mm
Weight: 37.8 kg
Permissible ambient temperature: 5 - 32 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: yes
Voltage: 230 / 100 - 115 V
Frequency: 50/60 Hz
Power input: 1100 W
