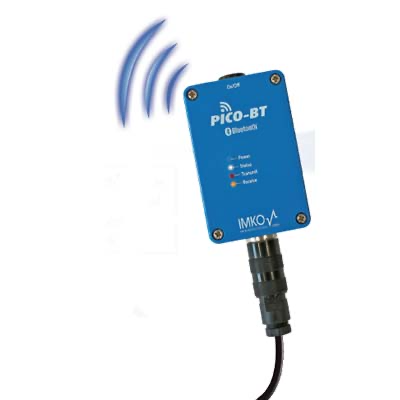

Imko PICO-BT Bluetooth module

Height: 36mm

Width: 63mm

Length: 98mm

Weight: (with storage battery) approx. 230g

Power Consumption

Power Down Condition: approx. 86µA

Idle Condition: approx. 20mA

Connected: ca. 100mA with Sensor; ca. 10mA without Sensor

Measuring: approx. 450mA

Operating Systems Tested with

Windows Mobile ™ 6.0

Microsoft ® Windows XP ™

Microsoft® Windows 10™

Linux Kernel Version >= 2.6

Android >= 2.6

Mac OS X Version >= 10.100

Connectable Sensors: PICO64, PICO32, PICO-IPH

Bluetooth: Bluetooth Specification 2.0

Operating Temperature: 20°C to 70°C

Charging Temperature: 10°C to 50°C

Charging Voltage: Nom. 12V, Max. 15V, Min. 12V

Charging Time: When completely discharged approx. 2h

Storage Battery: Ni-MH (4 x 1.2V) (AA), 1000mAh, >1500 Measurements

IMP-Bus Port Settings

Applications and benefits of PICO-BT

Simple to use via the push of a button: precise moisture measuring value within two seconds

Display of soil temperature of buried sensors

The system saves measuring values with date and time of day

Delivery with exact soil calibration

Own calibrations can be saved and recalled

Wireless Bluetooth Technology© module (class 2)

Range of more than ten meters

Including internally rechargeable battery

Low power consumption: up to 1,500 measurements

Sensors to connect: PICO64, PICO32, PICO-IPH/T3

Information on performed activities via four LEDs on the surface of the device
