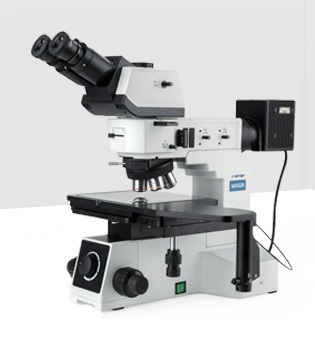

INSIZE 5108-M3000H Metallographic microscope (Ø25mm)

Eyepiece: high eye point large field SWH10X-H( view field: Ø25mm, adjustable visibility)

Objective (infinite long working distance bright and dark field semi achromatic): 5X, 10X, 20X, 50X

Working distance: 15mm, 8.4mm, 10.3mm, 3.0mm

Numerical aperture: 0.15, 1.30, 0.40, 0.75

Optical magnification: 50X~500X(up to 1000X with optional 100X objective)

Digital magnification: 170X~1700X(on 21.5" monitor), up to 3400X with optional 100X objective

Stage: Double

Size: 310x140mm

Travle: 150x100mm

Condenser: Roll-out achromatic condenser( numerical aperture 0.9)

Illumiriation: 5W LED, transmitted and reflected

Observation Tube: inverse image, distance adjustment: 50~76mm, two grade spectral ratio binocular:trinocular=100:0

Diopter adjustment: ±5 diopter (two eyepieces)

Power Supply: built-in 100-240V

Dimension(LxWxH): 310x600x500mm

Weight: 27kg

Standard Delivery

Main unit: 1pc

Anti-dust cover: 1pc

0.65X camera adapter(adjustable focus) 1pc

Polarizer and analyzer: 1pc of each

Optional accessory

Camera and software: ISM-CM63

Glass calibration rule: ISM-MAS-SCALE

Computer: 5108-M-COMPUTER

2.5X infinite long working distance bright filed semi achromatic objective: 5128-M-OB2.5X

100X infinite long working distance bright and dark filed semi achromatic objective: 5128-M-BD100X

50X infinite long working distance bright and dark filed achromatic objective: 5108-M-APO50X

100X infinite long working distance bright and dark filed achromatic objective: 5108-M-APO100X

Differential interference module(DIC): 5108-M-DIC
