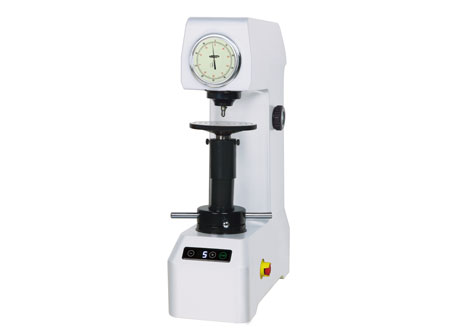

INSIZE HDT-RA151 Motorized Rockwell Hardness Tester

Hardness scale: HRA, HRB, HRC, HRD, HRF, HRG

Prelimibary test force: 98N

Test force: 588N, 980N, 1471N

Display: analogue

Stage elevation: manual

Load control: automatic (load/dwell/unload)

Load dwell time: 1~60 second

Min.reading: 0.5HR

Max.workpiece height: 170mm

Max.testing width: 128mm( from the center of indenter to the wall of main body)

Power supply: 220V, 50/60Hz

Dimension: 520x225x640mm

Weight: 65kg

Standard delivery:

main unit: 1pc

Φ58mm flat anvil: 1pc

Φ150mm flat anvil: 1pc

V-type anvil: 1pc

Diamond indenter: 1pc

Φ1.5875mm steel ball indenter: 1pc

Level: 1pc

Handness test block HRA80-88: 1pc

Handness test block HRB85-95: 1pc

Handness test block HRC20-30: 1pc

Handness test block HRC35-55: 1pc

Handness test block HRC60-70: 1pc

Anti-dust cover: 1pc
