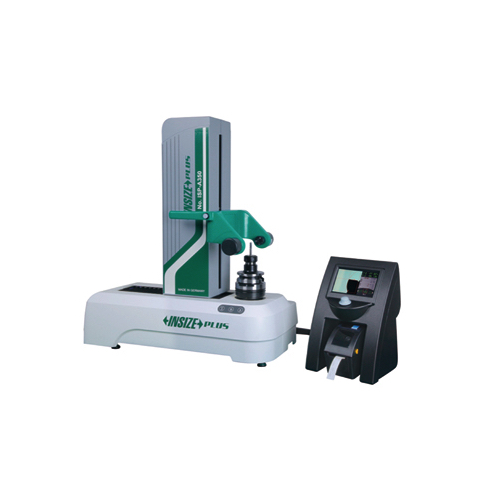

INSIZE ISP-A350 Tool Presetter (320mm x 350mm)

Maximum tool diameter (X axis): 320mm

Maximum tool height (Z axis): 350mm

Repeatability

X axis: 2µm

Z axis: 2µm

X/Z axis resolution: 1µm

Camera: Color CCD

Image processing accuracy: 1µm

Magnification: 12X

View field: 7×7mm

Illumination: Adjustable LED light

Spindle: ISO/SK/BT50 (concentricity: 2µm)

Data output: USB, RS232

Working air pressure: 0.6-0.8MPa

Environmental requirement:

Temperature: 5~35°C

Relative humidity: 10%~95%

Power supply: 100-240V, 50/60Hz

Dimension (L×W×H): 1200×400×870mm

Weight: 80kg

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Controller: 1 pc

ISO/SK/BT50 spindle (including 360° clamping and 4×90° clamping): 1 pc

Printer: 1 pc

Printer label paper: 1 pc
