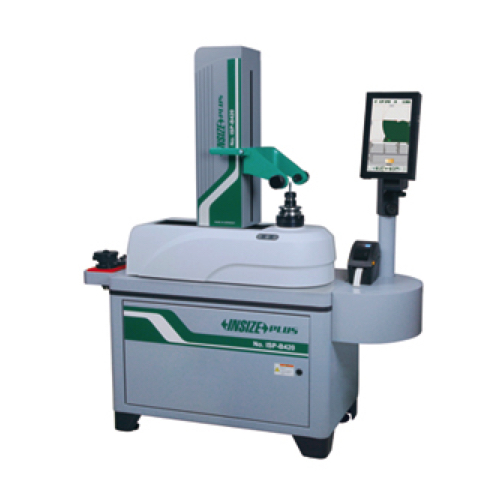

INSIZE ISP-B420 Tool Presetter (420mm x 420mm)

Maximum tool diameter (X axis): 420mm

Maximum tool height (Z axis): 420mm

Range of snap gage (X axis): 100mm

Repeatability:

X axis: 2μm

Z axis: 2μm

X/Z axis resolution: 1μm

Camera: color CCD

Image processing accuracy: 1μm

Magnification: 20X

View field: 7×7mm

Illumination: adjustable LED light

Spindle: ISO/SK/BT50 (concentricity 2μm)

Data output: USB, RS232

Working air pressure: 0.6~0.8MPa

Environmental requirement:

Temperature: 5 ~ 35°C

Relative humidity: 10%~95%

Power supply: 110/220V, 50/60Hz

Dimension (L×W×H): 1900×750×1750mm

Weight: 274kg

Datasheet

STANDARD DELIVERY:

Main unit: 1 pc

Controller: 1 pc

Bracket for tools and converters: 1 pc

ISO/SK/BT50 spindle (including 360° clamping and 4×90° clamping): 1 pc

Printer: 1 pc

Printer label paper: 1 pc
