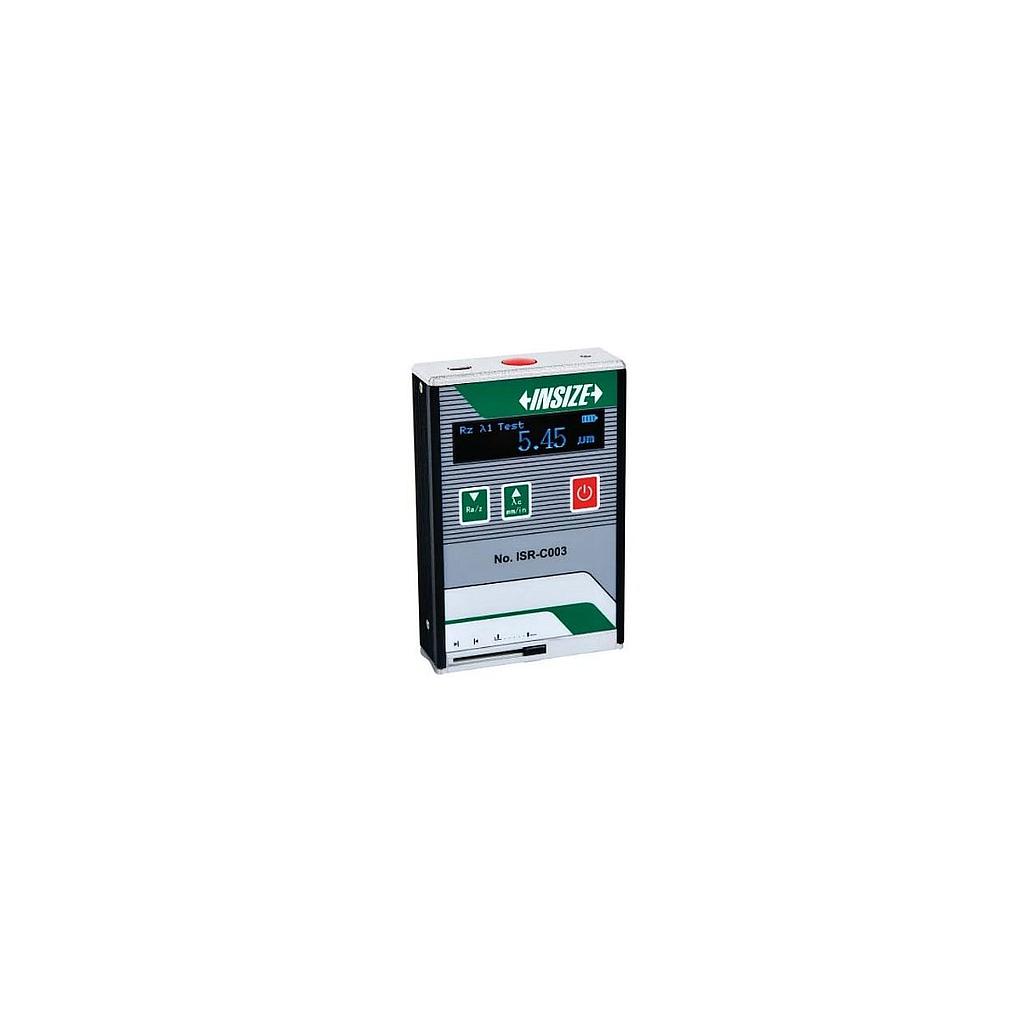

INSIZE ISR-C003 Roughness Tester

Unit: µm/µin

Automatic power off

Parameters: Ra, Rz, Rq, Rt

Range: Ra, Rq: 0.05-15µm, Rz, Rt: 0.1-50µm

Accuracy: ±10%

Resolution (Ra): 0.01µm

Probe type: piezoelectric

Probe Stylus radius/ angle: 10µm/90 °

Probe stylus material: diamond

Measuring force: 5mN

Measuring unit: µm/µin

Cut off: 0.25/0.8/2.5mm

Evaluation length: 1.25mm for cut off 0.25mm

4mm for cut off 0.8mm

5mm for cut off 2.5mm

Traverse speed: 0.75mm/s

Power: built-in rechargeable results

Dimension(L×W×H): 106x70x24mm

Weight: 200g
