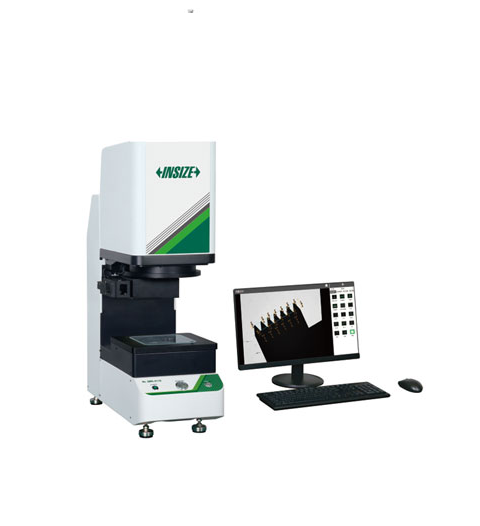

INSIZE QMS-A110 Quick Measurement System (98x78mm)

Optical lens: low-distortion lens, single-field telecentric Ø100mm

View field range: 100x80mm

Measurement range(XxY): 98x78mm

Measurement accuracy: +3μm

Repeatability: +1μm

Max. weight of workpiece: 5kg

Measurement time: <2s

Measurement data: 2D measurement

Power supply: 220V, 50Hz, 600W

Illumination system

back light: telecentric illuminator, green light

ring light: 4-zone circular white high light circular (directional) low-angle green light (eletric)

Environmental requirement: temperature: 20°C+2°C, relative humidity: 30%-80%, vibration: <0.002g, less than 15Hz

Dimension (LxWxH): 580x235×790mm

Weight: 40kg

Standard delivery: Main unit, computer, software
