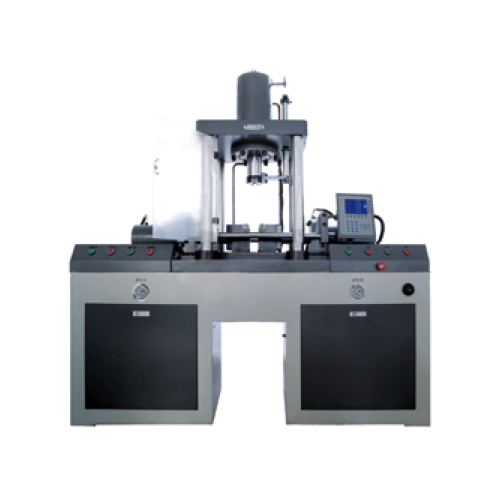

INSIZE STM-E1 Vertical Bending Testing Machine (0~180°)
ManufacturerINSIZE(View more products from this manufacturer)
ModelSTM-E1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Angle of bend: 0~180°
Length of bending indenter: ≥150mm
Size of support roller: Ø40×140mm
Max. system pressure*: 25MPa
Max. test force for longitudinal bending*: 500kN
Working stroke of longitudinal piston*: 270mm
Max. clamping force*: 250kN
Stroke of single piston*: 150mm
Resolution of displacement: 0.01mm
Dimension (W×D×H): 1520×650×1920mm
Weight: 1000kg
Power supply: AC 380V, 30, 50Hz, 1.5kW
*Can be customized according to test requirements
