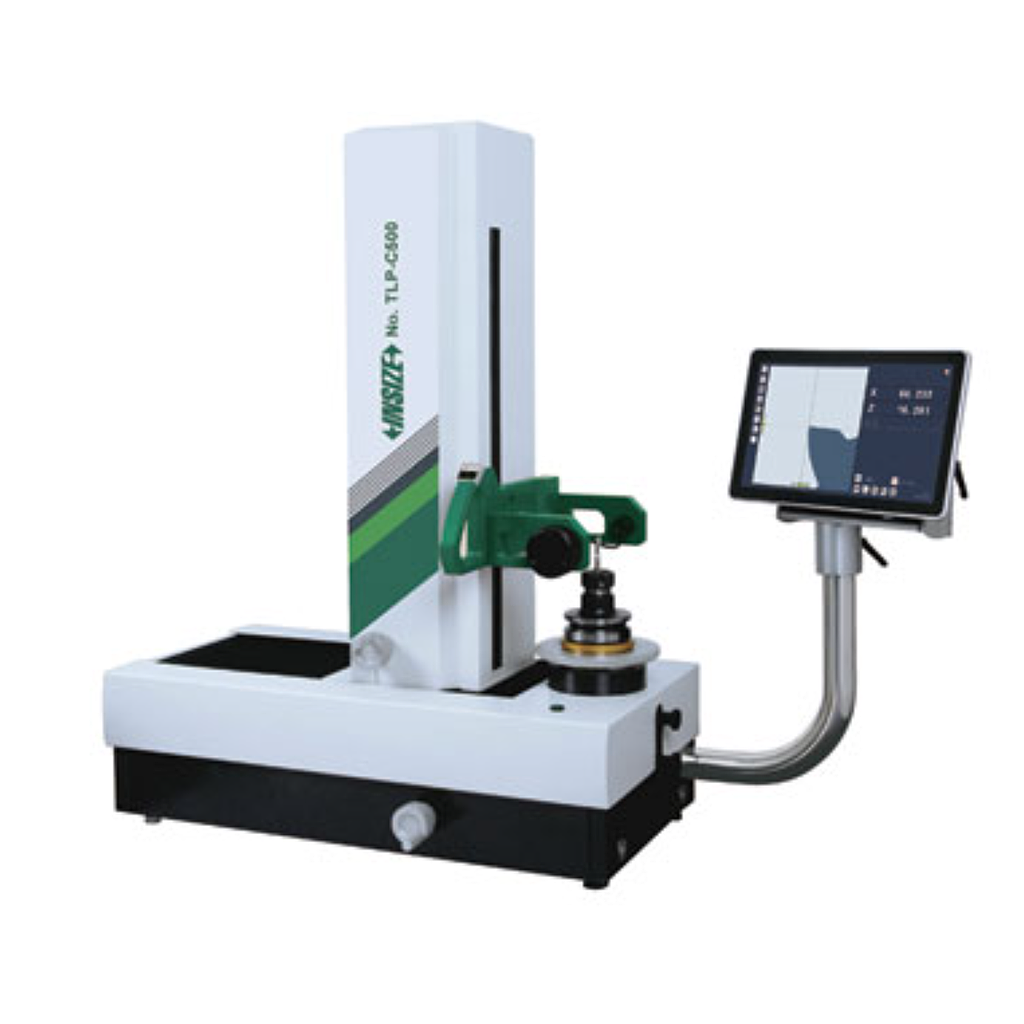

INSIZE TLP-C500 Tool Presetter

Maximum tool diameter (X-axis): 400 mm

Maximum tool height (Z-axis): 500 mm

Repeatability X-axis: 2µm

Repeatability Z-axis: 2µm

Resolution of X/Z axis: 1µm

Radial runout of spindle: ≤2µm at 100mm, ≤5µm at 300 mm

Camera: color CCD, 1.3M pixel

Magnification: 26X

View field: 6.5x6.5 mm

Illumination: LED transmitted light source

Spindle: ISO/SK/BT50

Output: USB

Air pressure: 0.4-0.6 MPa

Environment requirement: temperature: 10-45°C, relative humidity: 30-75%

Power supply: 220V

Dimension (LxWxH): 860x590x1060mm

Weight: 120kg

Datasheet
