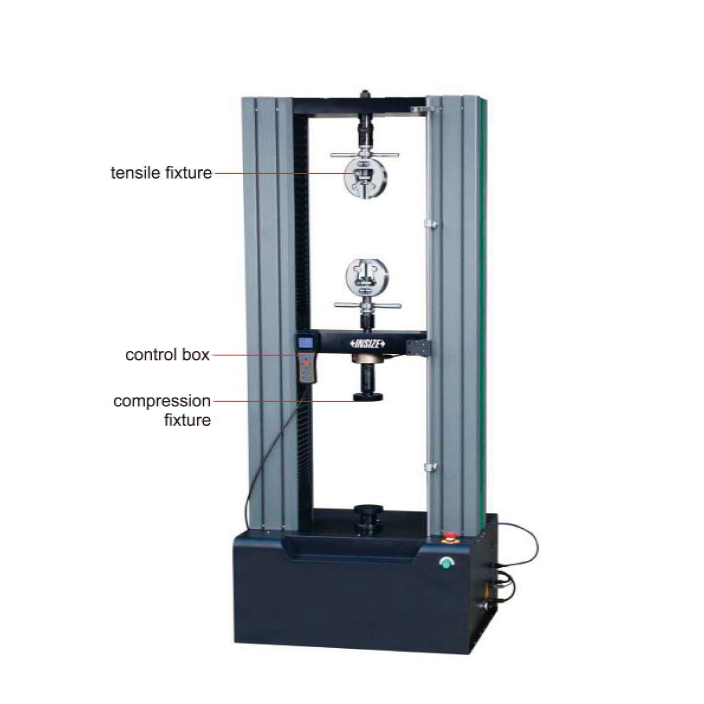

INSIZE UTM-E100 electronic Universal Testing Machine (100kN)

Max. test force: 100kN

Accuracy class: 0.5 class

Test force measurement range: 0.2% - 100%FS

Test force measurement accuracy: ±0.5% of the indicting value

Resolution of test force measurement: 1/500000FS

Crossbeam displacement accuracy: ±0.5% of indicating value

Range of displacement resolution: 0.025µm

Range of speed adjustment: 0.001 ~500mm/min

Range of force control speed: 0.005-5%FS/s

Force control speed control accuracy:

±2% of the set value (speed<0.05%FS/s)

±0.5% of the set value (speed ≥0.05%FS/s)

Deformation speed control accuracy:

±2% of the set value (speed<0.05%FS/s)

±0.5% of the set value (speed ≥0.05%FS/s)

Compression fixture: ø160mm

Vertical test space: 1250mm

Effective compression travel: 700mm

Effective tets width: 600mm

Power supply: 380V, 50Hz, 2kW-5kW

Dimension: 1070x855x2180mm

Weight: 1000kg
