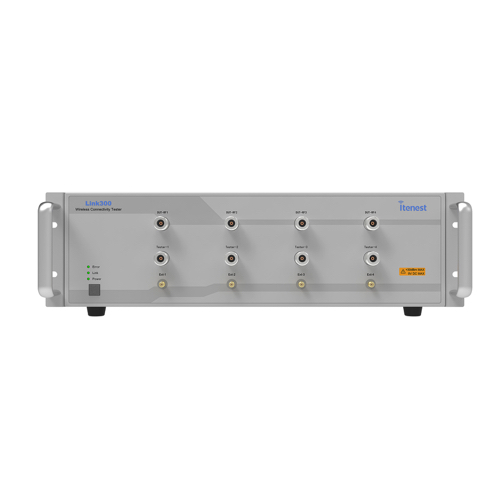

iTenest Link300 Wireless Connection Tester (Wi-Fi 7 320M 4 * 4MIMO)

Wireless LAN Measurement Common Specifications

Signaling Mode:

STA: Beacon level from DUT (Input power level): -80 to +30 dBm

AP: Beacon power (Output power level): -100 to 0 dBm

Spatial Streams: SISO to 4x4 MIMO, Spatial Multiplexing, STBC

Standards: 802.11a/b/g/n/ac/ax/be

Signal Bandwidth: 20, 40, 80, 160, 320 MHz

Supported Channels:

2.4 GHz Band: 1 - 14

5 GHz Band: 36 - 173

6 GHz Band: 1 - 233

Security: Open system, WEP 64/128, WPA-PSK, WPA2-PSK, WPA3

Wireless LAN RvR Measurement Specifications

Traffic Direction: Uplink, Downlink, Bidirectional

Traffic Type: TCP, UDP

Interference Source: With any WT tester(s)

Extension Function: Ext Link

Wireless Interface: Link300 unit

Ethernet Interface: 10G/5G/2.5G/100 Mbps adaptive

General and Environmental

Attenuation Range (DUT-RF1 to RF4): 0 to 120 dB

Attenuation Resolution (DUT-RF1 to RF4): 0.25 dB

Attenuation Accuracy (DUT-RF1 to RF4): ±0.5 dB

Input/Output Return Loss (DUT-RF1 to RF4): >13 dB

Port to Port Isolation (DUT-RF1 to RF4): >120 dB
