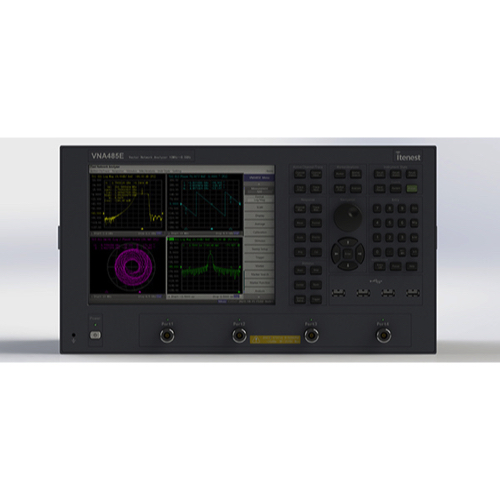

iTenest VNA485E Vector Network Analyzer (100kHz ~ 8.5GHz)

SYSTEM MEASUREMENT RANGE

Frequency Range: 100kHz to 8.5GHz

Number of Test Ports: 2 or 4

Test Port Connector Type: NMD 3.5mm, male

Output Power Range:

100kHz to 2MHz: -55dBm to -10dBm

2MHz to 8.5GHz: -55dBm to +10dBm

System Impedance: 50Ω

Frequency Setting Resolution: 1Hz

Power Setting Resolution: 0.05 dB

Number of Measurement Points: 1 to 20,001

System Bandwidth (IFBW): 10Hz to 1.5MHz

System Dynamic Range (RF Range Fixed Mode = OFF, @IFBW = 10Hz):

100kHz to 500kHz: 95dB

500kHz to 2MHz: 110dB

2MHz to 8.5GHz: 135dB

MEASUREMENT ACCURACY (UNCERTAINTY)

Trace Noise: Meas. Power = Max Output Power

Transmission:

100kHz to 10MHz (IFBW = 3kHz): 4mdB rms / 0.03° rms

10MHz to 8.5GHz (IFBW = 70kHz): 3mdB rms / 0.03° rms

Reflection:

100kHz to 10MHz (IFBW = 3kHz): 5mdB rms / 0.05° rms

10MHz to 8.5GHz (IFBW = 70kHz): 3mdB rms / 0.05° rms
