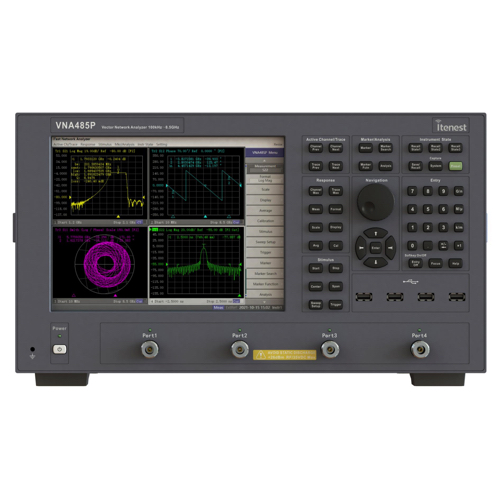

iTenest VNA485P Vector Network Analyzer (100 kHz ~ 8.5 GHz)

SYSTEM MEASUREMENT RANGE

Frequency Range: 100 kHz to 8.5 GHz

Number of Test Ports: 2 or 4

Test Port Connector Type: N-Type, Female

Output Power Range:

100 kHz to 2 MHz: -55 dBm to -10 dBm

2 MHz to 8.5 GHz: -55 dBm to +10 dBm

System Impedance: 50Ω (75Ω via adapter)

Frequency Setting Resolution: 0.05 dB

Number of Measurement Points: 2 to 20,001

System Bandwidth (IFBW): 10 Hz to 1.5 MHz

System Dynamic Range (RF Range Fixed Mode = OFF) @ IFBW = 10 Hz:

100 kHz to 500 kHz: 95 dB

500 kHz to 2 MHz: 110 dB

2 MHz to 8.5 GHz: 135 dB

MEASUREMENT ACCURACY (UNCERTAINTY)

Trace Noise: Meas. Power = Max Output Power

Transmission:

100 kHz to 10 MHz (IFBW = 3 kHz): 4 mdB rms / 0.03° rms

10 MHz to 8.5 GHz (IFBW = 70 kHz): 4 mdB rms / 0.03° rms

Reflection:

100 kHz to 10 MHz (IFBW = 3 kHz): 5 mdB rms / 0.05° rms

10 MHz to 8.5 GHz (IFBW = 70 kHz): 5 mdB rms / 0.05° rms
