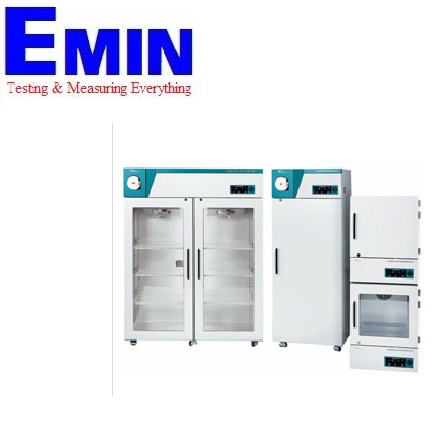

Jeiotech CLG-1400 Laboratory Refrigerators

Chamber volume [L / cu ft] 1395 lit
Display VFD and touch-screen
Temperature range [℃/ ℉] 2 ~ 10 / 35.6 ~ 50
Refrigerator [Hp] 1/4 x 2 sea
Door type Heated glass or Solid
Meterial Stainless steel #304, Steel, 1.0 mm, powder coating
Dimensions [W×D×H] : Interior [mm / inch]:1425×675×1450 mm
Exterior [mm / inch] :1545×815×1965mm
Electrical Requirements [230V, 50Hz] 6.0 A
Cat. No. Solid door type AAHE1042K
Glass door type AAHE1142K

Datasheet

Safety Features

• Automatic shutdown of fan for minimization of heat loss when the door is opened.
• Over current protection, high and low temperature alerts, key pad button lock function.
• Open door alert, built in door lock.

Operational Features

• Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons.
  - Easy temperature unit conversion between °C and °F
• Optimizing defrost systems.
  - Innovative auto-defrost system automatically activated when detecting trace amount of frost build-up
  in the evaporator for CLG-150, 300, 650.
  - None defrost system needed for CLG-850, 1400 due to its dual refrigerating system.
• Three types of recorders to choose from (optional)
  - Dot recorder (6 point)
  - Chart recorder (6”, 24hr/7days)
  - Thermal line recorder

Constructional Features

• High-quality 304 grade stainless steel chamber.
• Fully insulated chamber ensuring minimal chamber’s temperature fluctuation.
• Clear observation of stored samples.
  - Tempered glass door with built in wire heater.(for the models with glass doors only)
  - Built-in bright fluorescent lighting.(except for CLG-150)
• Built-in fluorescent lighting for all refrigerators (except for CLG-150 Models)
• Easy to store samples with included wire shelves.
• High thermal efficiency evaporation system, made of low corrosive materials.
• Fully insulated chamber ensuring minimal chamber temperature fluctuation
• Built-in 50mm diameter cable port for external probes or wires.(except for CLG-150)
• High thermal efficiency evaporation system made of low corrosion material
• Dedicated stand with casters and stacking kit for 150 Models for use in labs with limited space (optional)
• Various accessories.
