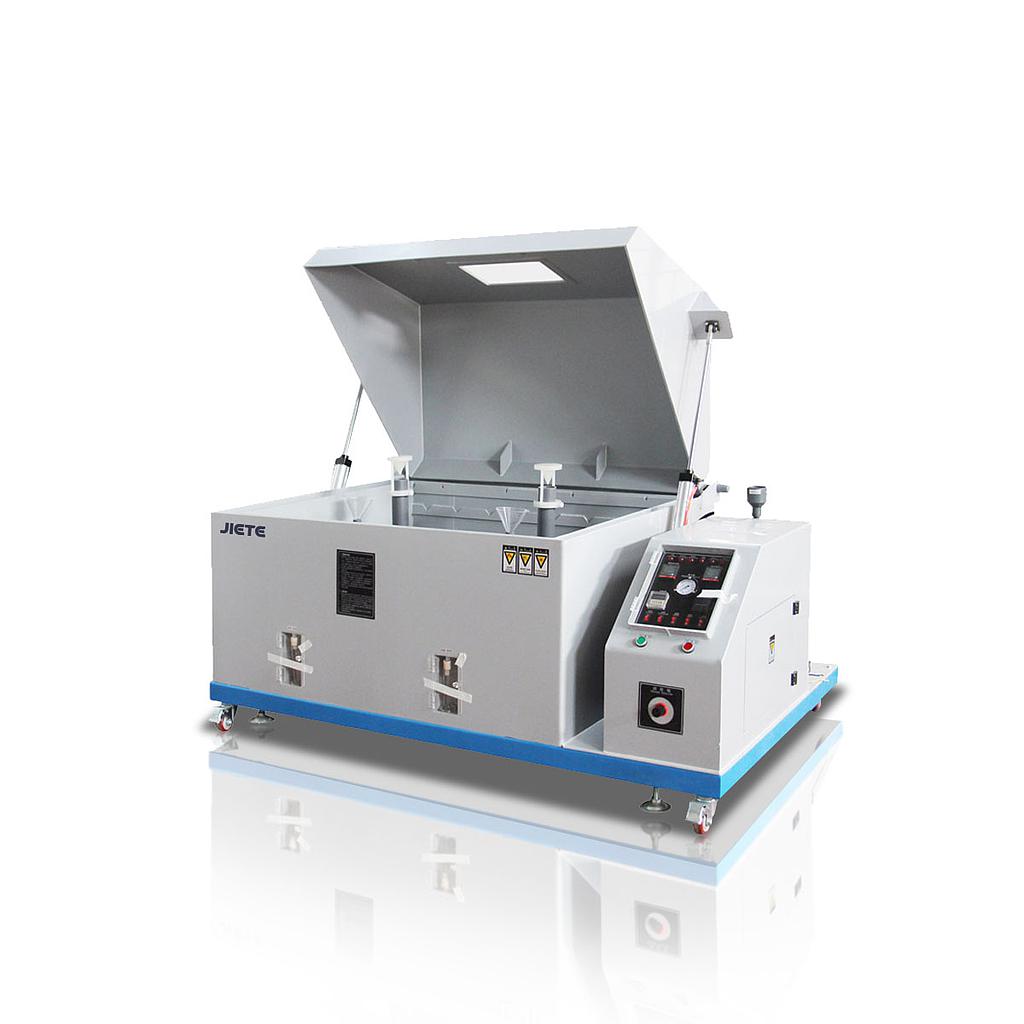

JIETE JSST-060 Salt Spray Test Chamber (108L; 1.00±0.01kgf/cm²)

Chamber Design:

Internal Volume (L): 108

Internal Dimensions (cm): 60x40x45

External Dimensions (cm): 115x100x75

Temperature Test Parameters:

Temperature Fluctuation(°C): ≤±0.5

Temperature Uniformity(°C): ±1

Salt Spray Deposition Amount(cm²·h): 1~2ml/80cm²·h

Spray Pressure(kgf/cm²): 1.00±0.01kgf/cm²

Spray Mode: Continuous spray+intermittent spray

Power Supply And Connection:

Power Supply(V/Hz): AC220V/50Hz

Maximum Power(KW): 1.5

Control Mode: PID+SSR

Environmental Temperature/Humidity For Use: Air cooling:+5 ℃~+28 ℃/≤ 85% RH; Water cooling: water temperature 10 ℃~28 ℃, water pressure: 0.25~0.4MPa

System Components:

Material Science:

Outer Box Material: A-grade PVC polyethylene board (acid and alkali resistant and temperature resistant up to 78 ℃)

Sealing Cover: A-grade transparent PVC board (thickness 5mm, surrounding reinforcement 10mm)

Opening Method: Manual lid opening

Heater: Nickel chromium wire heater

Temperature Sensor: Electric temperature controller/digital setting/PID automatic adjustment

temperature Controller: Platinum resistance PT100

Spray Time: Time control 0.1s~9999hr, with power failure memory function/dual timing time controller display time 0.1s~99hr, which can realize alternating spray function

Safety Device: Independent over temperature protector, leakage protection, etc

Enclosure: Mist exhaust pipe, air pipe, spare nozzle, storage rack, storage rod, etc

Features:

Wide Testing Range: Simulates high salt concentration environments, providing realistic testing conditions for a variety of materials and coatings.

Precise Temperature and Humidity Control: Allows precise control of temperature and humidity levels to maintain consistent and reliable testing conditions.

Corrosion Acceleration: Accelerates the corrosion process, providing faster insights into the material’s resistance to corrosion under saline conditions.

User-Friendly Interface: Equipped with an intuitive interface for easy operation and parameter adjustment, ensuring convenience during testing.

Durable Construction: Built with high-quality materials that ensure long-term reliability and resistance to environmental factors during testing.

Customizable Testing Duration: Supports varying test durations to accommodate different testing standards and requirements.

Compliance with Standards: Designed to meet international standards, such as ISO 9227 and ASTM B117, for corrosion testing.
