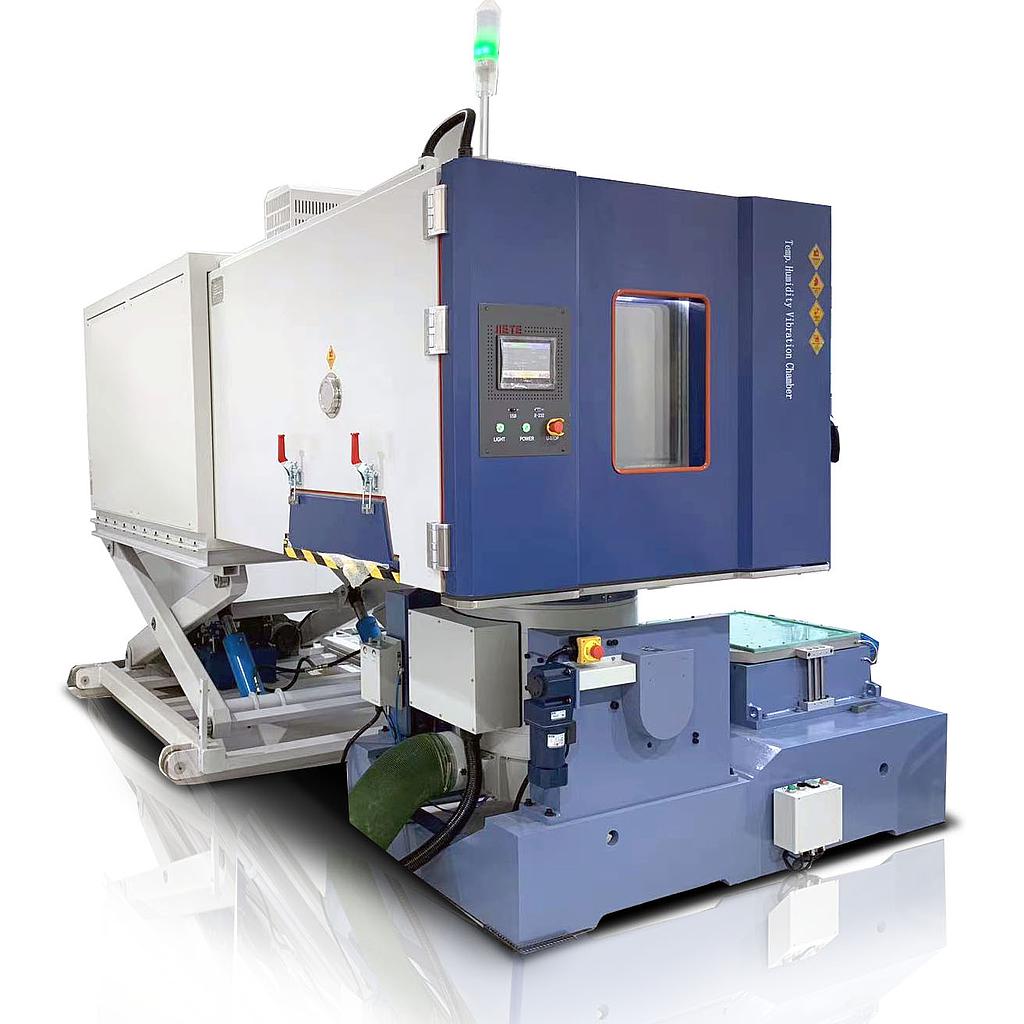

JIETE JSZH-1150L-40-XCPW Combined Environmental Test Chamber (1150L; -40°C~+150°C; Water cooling)

Chamber Design:

Internal Volume (L): 1150

Internal Dimensions (cm) WxHxD: 120x80x120

External Dimensions (cm) WxHxD: 161x213x412

Vibration Table Surface Size (cm): 60*60

Temperature Test Parameters:

Temperature Range (°C): -40°C~+150°C

Humidity Range(%RH): 20%（10%）~98%RH

Heating Rate(°C/min): 1 ℃~5 ℃ (10 ℃, 15 ℃, 20 ℃, 25 ℃)/min Overall average or linear

Cooling Rate(°C/min): 1 ℃~5 ℃ (10 ℃, 15 ℃, 20 ℃, 25 ℃)/min Overall average or linear

Temperature Fluctuation(°C): ≤±0.5

Temperature Uniformity(°C): 2

Temperature Deviation(°C): ±2.0

Humidity Deviation(%RH):

Power Supply and Connection:

Power Supply(V/Hz): AC 380V±10%； 50Hz±2Hz； Three phase four wire+ground wire

Control Mode: PID+SSR

Environmental Temperature/Humidity For Use: Air cooling:+5 ℃~+35 ℃/≤ 85% RH; : water temperature 10 ℃~28 ℃, water pressure: 0.25~0.4MPa

System Components:

Material Science:

+ Shell Material: Cold rolled steel plate electrostatic double-sided spray coating

+ Inner Liner Material: SUS # 304 stainless steel plate

+ Thermal Insulation Material: 120mm rigid polyurethane foam insulation layer

Refrigeration System:

+ Cooling Method: Mechanical binary freezing method (air-cooled/water-cooled)

+ Compressor: Full density vortex compressor

+ Refrigerant: Environmentally friendly refrigerant

Heating System: Finned nickel chromium alloy electric heating tube

Circulating Fan: Multi blade centrifugal circulating fan, reinforced shaft and high and low temperature resistant rotating blades made of aluminum alloy

Door Observation Window: Coated heating anti frost central control glass observation window

Temperature Sensor: Platinum resistance PT100

Humidity Sensor: Electronic sensor

Temperature/Humidity Controller: Touch screen 10.0-inch color LCD touch control screen

Noise(dB（A)): ≤ 70dB (A-level sound level)

Enclosure: 2 Φ 100mm operating holes (with cover and soft plug), lighting fixtures, air pressure balancing device, etc

Features

Multi-Functional Testing Capabilities

Integrates temperature, humidity, and vibration testing in one chamber.

Allows for simultaneous or sequential testing to simulate real-world conditions.

Precision Environmental Control

Advanced control systems provide precise regulation of temperature and humidity levels.

Stable and uniform environmental conditions ensure consistency and repeatability in test results.

User-Friendly Interface

Intuitive touch-screen display for easy navigation and operation.

Programmable settings and customizable test profiles to accommodate various testing requirements.

Robust and Durable Construction

High-quality materials and engineering ensure long-term reliability and resistance to wear.

Sealed design minimizes contamination and maintains internal conditions effectively.

Comprehensive Data Logging and Analysis

Built-in data acquisition systems record key parameters in real-time.

Connectivity options for seamless integration with external software for detailed analysis and reporting.

Enhanced Safety Features

Equipped with over-temperature protection, pressure relief valves, and emergency shut-off mechanisms.

Compliance with international safety standards to protect both users and equipment.

Energy Efficiency

Designed with energy-saving components to reduce power consumption without compromising performance.

Environmentally friendly operation contributes to lower operational costs.

Compact and Space-Saving Design

Optimized footprint allows for installation in laboratories and industrial settings with limited space.

Modular design options for easy expansion or integration into existing systems.

Versatile Application Range

Suitable for testing a wide variety of products, including electronic devices, automotive parts, pharmaceuticals, and materials.

Ideal for stress testing, lifecycle analysis, and environmental simulation.

Compliance with International Standards

Meets or exceeds industry standards such as ISO, ASTM, and IEC for testing equipment.

Ensures that test results are globally recognized and trusted.

Low Maintenance Requirements

Easy access to internal components for routine maintenance and servicing.

Minimal downtime with durable parts and reliable performance.

Advanced Vibration Testing Capabilities

Simulates real-world vibrational stresses to assess product durability and performance.

Adjustable frequency and amplitude settings to replicate various environmental conditions.
