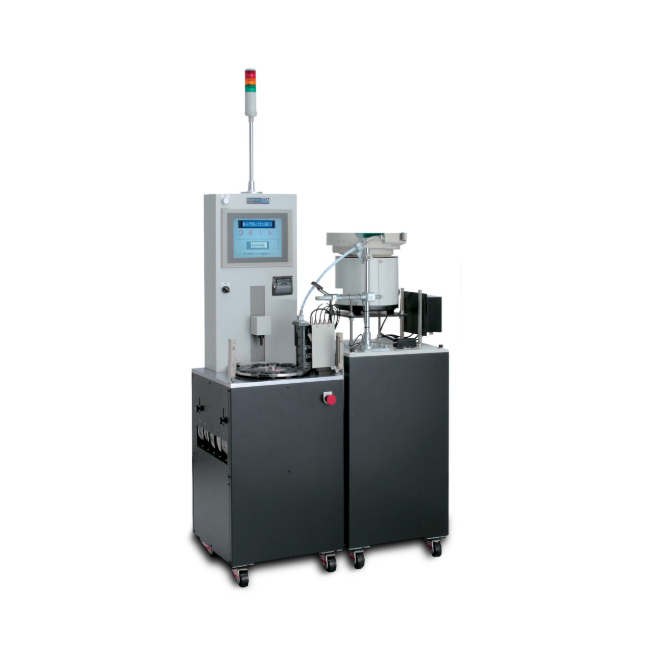

JISC ACE-1KN Fully Automatic Spring Tester with Sorting function (1kN (100kgf))

Maximum Load: 1kN (100kgf)

Auto Switch Over of Hi / Lo Range: 1kN / 100N

Load Resolution: 0.1N / 0.01N

Load Accuracy: JIS B 7738 Class 0.5 ( ± 0.5{eb9cfd4e3b516869cb839b8b2c338ebd16b99827caa87fe8648376116c5dd92c} of Applied Load)

Maximum Free Length to test: 99.99mm

Length Resolution: 0.01mm

Length Accuracy: ± (0.05 + 0.0001 * L) mm where L is the arbitrary length

Test Speed: 1~3000mm/min

Max test length: 99.99mm

Maximum O.D of Spring for test: Ø40mm

Cycle Time of Testing: 30 Pcs / min base on 1 step load only

Power Supply: Single Phase AC 110 ~120V or AC 220~240V (50/60Hz)

Power Rating: 100VA

Dimension: W470 x D470 x H1520mm

Weight: Approx 130kg

CHARACTERISTICS

ACE series Fully Automatic Spring Tester withSorting function.

This tester conform to JIS B 7738 Grade 0.5 which is the highest grade.

It function is similar to our PRO Series of spring tester except that its touch screen with SPC control function to show Histogram & Trend Chart.

There are only 2 models for this series, ACE-100N & ACE-1kN only.
