Test Action: Compression & Tension (No side force for tension spring)
Maximum Load: 5kN
Unit Selection: N, kN, kgf, lbf
2 Range Auto Switch Over: 5kN / 500N
Load Resolution: 1N / 0.1N
Maximum Side Force Load: 500N
Load Resolution: 0.1N
Load Accuracy: JIS B 7738 Class 0.5 ( ± 0.5% of Applied Load)
Maximum Stroke: 590mm
Length Resolution: 0.01 mm
Length Accuracy: ± (0.05 + 0.0001 * L) mm where L is the arbitrary length
Test Speed: 10～2000 mm/min
Diameter of Anvil: Ø150mm
Thread Hole of Anvil Center: M6 x P1.0
Precision Head Control: Precision ball screw and servo motor control
Speed control key (H,M,L keys): High Speed: 1000 (mm/min), 1 mm / inching; Medium Speed: 100 (mm/min), 0.1 mm / inching; Low Speed: 10 (mm/min), no inching
Protective Stop Function: Stop by the upper and lower limit; Stop by the upper and lower soft limit function; Stop Key and emergency stop button to prevent overloading
Power supply: Single Phase AC 220~240V (50/60Hz)
Power Rating: 300VA
Dimension: W800 x D400 x H1240mm
Weight: Approx. 200kg

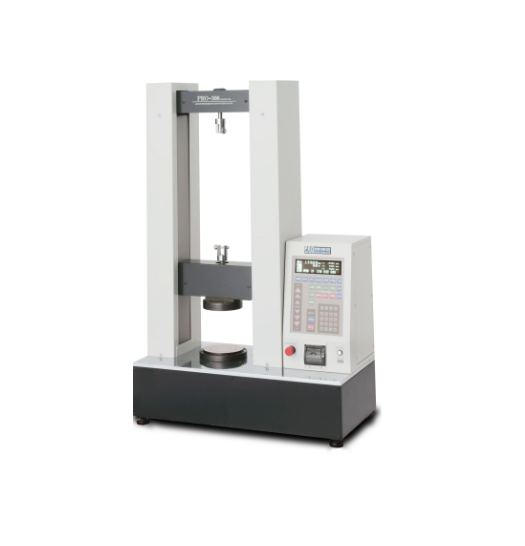

Side Force for Suspension Spring Tester is a new and innovative machine that is develop from our spring testing machine over the years.
There will be three load cells above and under the compression and an additional three load cells for the XY axis, using 9 load cells for total compression load on proprietary software, to obtain displacement force from the top and bottom moment of the spring with reference to the center.
All data can be collected in a single movement using this tester.
*Note : No side force for Tension Spring in SFT series.
Standard : Graph of Compression Load against Length
Fx-Fy : Graph showing the side force based on XY-Axis.
Fxy-deg : Graph showing the angle obtained from the side force based on XY-Axis.
Mz : Moment for Z Axis
GxU-GyU : Graph showing the displacement from the top of the spring in XY-axis with reference to the center of coil.
GxyU-deg : Graph showing the displacement in angle from the top of the spring in XY-axis with reference to the center of coil.
Mx-U : Moment for X-Axis at the top of the spring
My-U : Moment for Y-Axis at the top of the spring
GxL-GyL : Graph showing the displacement from the bottom of the spring in XY-Axis with reference to the center of coil.
GxyL-deg : Graph showing the displacement in angle from the bottom of the spring in XY-Axis with reference to the center of coil.
Mx-L : Moment for X-Axis at the bottom of the spring
My-L : Moment for Y-Axis at the bottom of the spring
