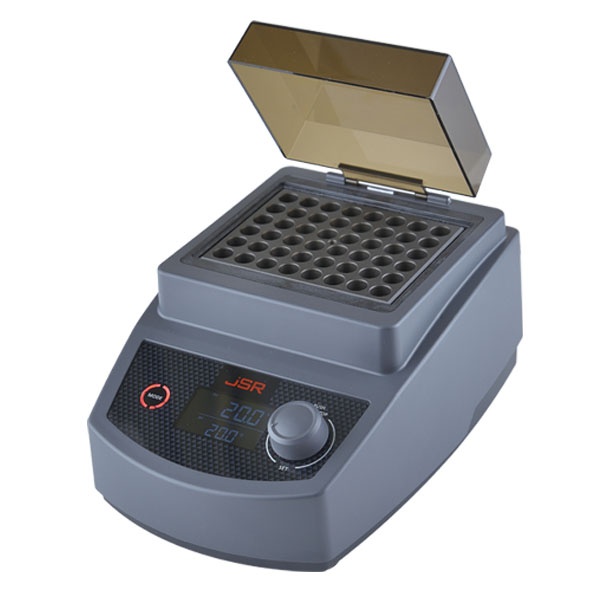

JSR JSDB-01T Dry Bath Block Heater (+5°C ~ +150°C; 5°C /min)

Performance Data

Temp. Range: Ambient +5 °C ~ 150 °C, 0.1 °C Resolution

Temp. Accuracy:

+/-0.1 °C at 37.0 °C

+/-0.2 °C at 90.0 °C

+/-0.4 °C at 135 °C

Controller

Type: Digital Fuzzy Control with Capacitive Touch Button and Jog Dial

Display: Full Size Digital Back Light Graphic LCD Display

Timer: 1 min. ~ 99 hr 59 min.

Heat up Speed: Approx. 5 °C/min.

Dimensions

Block Dims. (W x D x H): 120 x 92 x 40/50 mm

Outer Dims. (W x D x H): 170 x 250 x 145 mm

Safety Data

Safety Device: Over-Temp. Cut-Off Audio Visual Alarm

Over Current Cut-Off: Yes

Material Data

Body: ABS

Bath: PPS

Block: Anodized Aluminum

Electrical Data

Power Requirement: 230 +/-10% VAC, 50/60 Hz

Nominal Power: 300 Watt, 1.3 amp.

Phase: 1 Phase

Plug Configuration: CEE 7/7 Schuko or BS 1363

Usable Condition

Temp. & Humidity: 5°C ~ 40°C, 80% RH Max.

Datasheet
