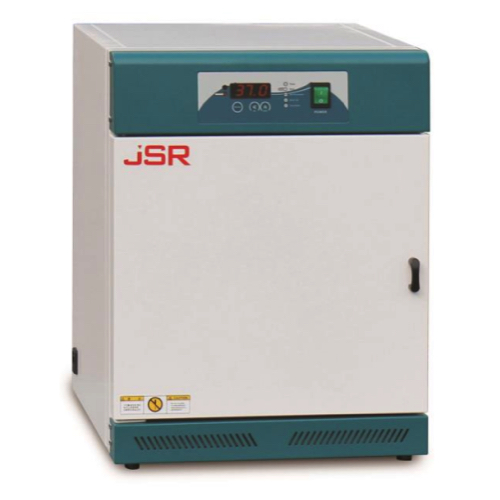

JSR JSGI-30T Compact Incubator (31.5 L; 100 W)

Dimension Data

Chamber Volume: 31.5 Liters

Inner Dims. (W x D x H mm): 300 x 300 x 350 mm

Outer Dims. (W x D x H mm): 425 x 460 x 590 mm

No. of Wire Coated Shelves Included: 2 ea

No. of Shelf Positions: 12 ea x 25 mm Spacing

Performance Data

Heating System: Gravity Convection

Temp. Range: Amb. +5 °C ~ +50 °C

Accuracy: ±1.0 °C at 37 °C

Uniformity: ±2.0 °C at 37 °C

Controller

Processor: Digital Microprocessor PID Temperature Controller

Display: 4-Digit LED Display

Temp. Calibration: Built-in Temperature Calibration

Temp. Resolution: 0.1 °C

Timer Scale: 99 min 59 sec / 99 hr 59 min / 99 day 23 hr

Timer Function: Auto START / STOP Timer

Sensor: CLASS A PT-100 Ω Sensor

Electrical Data

Rated Voltage: 220 ±10% VAC

Power Frequency: 50 / 60 Hz

Heater Output: 100 W

Nominal Power: 100 W, 0.5 amp

Phase: 1 Phase

Plug Configuration: CEE 7/7 Schuko

Usable Condition

Temp. & Humidity: 5 °C ~ 40 °C, < 80% RH
