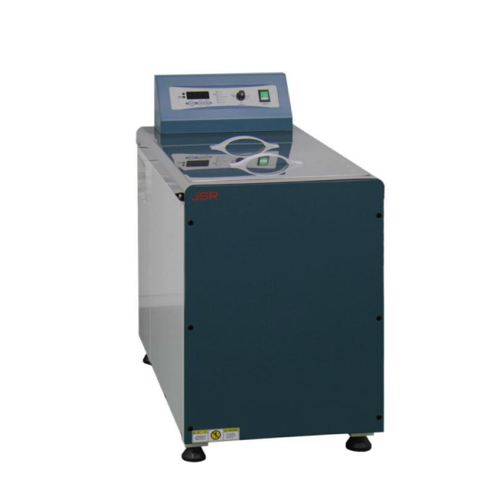

JSR JSIB-100T Large Capacity Circulation Bath (100 L; 5.0 kW)

Bath Capacity: 100 Liters

Inner Dims. (W x D x H): 400 x 500 x 500 mm

Usable Dims. (W x D x H): 400 x 500 x 450 mm

Outer Dims. (W x D x H): 485 x 765 x 785 mm

Temp. Range: Ambient +5℃ ~ +99℃

Accuracy: ±0.2℃ at +37℃

Uniformity: ±0.5℃ at +37℃

Circulation Pump:

Flow Rate: 13 Liter/min

Pressure: 0.5 bar

Control: Microprocessor PID Control with Auto START / STOP Timer

Sensor: Class A PT-100 Ω Sensor

Safety:

Over-Temperature Cut-Off

Over Current Cut-Off

Low Water Level Cut-Off

Material:

Body: Epoxy Powder Coated Steel

Bath: Seamless Stainless Steel 304

Pump: Stainless Steel 304

Electrical Requirement: 220 ±10% VAC, 50/60 Hz, 1-Phase

Heater Capacity: 5.0 kW

Power Rating: 23 amps

Plug Configuration: 30 Amp

Datasheet
