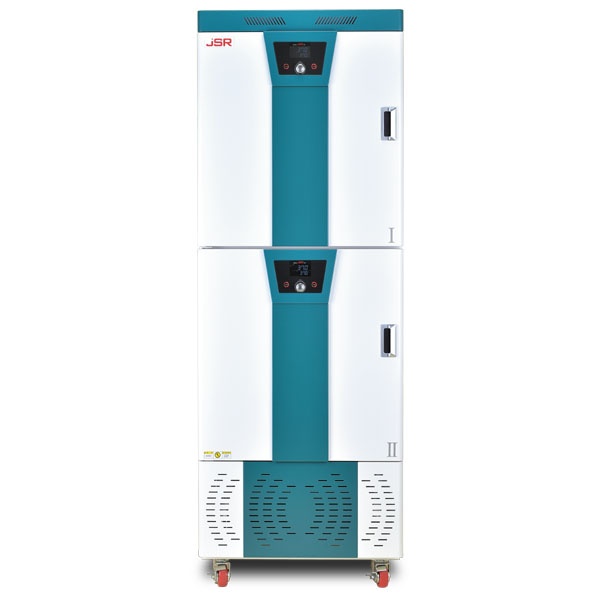

JSR JSMI-02C Dual Chamber Refrigerated BOD Incubator (2 Chambers x 125 L; +0 °C ~ +70 °C; 2 x 1.0 kW)

Dimension Data

Chamber Volume: 2 Chambers x 125 L

Inner Dims. (W x D x H mm): 500 x 500 x 500 mm

Outer Dims. (W x D x H mm): 680 x 825 x 1820 mm

No. of Shelf Positions: 16 ea

No. of Shelves Included: 4 ea

Performance Data

Heating System: Forced Air Convection

Cooling System: None

Temp. Range: Amb. +0 °C ~ +70 °C

Accuracy at +20.0 °C: ±0.2 °C

Uniformity at +20.0 °C: ±1.0 °C

Controller

Processor: Digital Microprocessor PID Temperature Controller

Display: Back Light Graphic LCD Display

Panel: UV Coated Polycarbonate Solid Touch Panel

Button: Capacitive Touch LED Lighting Touch Button

Interface: Push and Rotary Encoder Type Jog Dial

Control Logic: 3 Zone PID Control

Calibration:

1 Point Temperature OFFSET

3 Point Temperature Calibration

Resolution: 0.1 °C

Auto-Stop Timer: 1 min. ~ 99 hr 59 min.

Auto-Start Timer: 1 min. ~ 99 hr 59 min.

Sensor: CLASS A PT-100 Ω Sensor

Power Restoration: Power and Timer Restoration Function in case of power outage

PC Communication Interface: RS-232C Pc Communication Interface [Option]

Electrical Data

Rated Voltage: 220 ±10% VAC

Power Frequency: 50 / 60 Hz

Heater Output: 2 x 1.0 kW

Nominal Power: 3.2 kW 14.5 amp

Phase: 1 Phase

Plug Configuration: CEE 7/7 Schuko or BS 1363

Usable Condition

Temp. & Humidity: 5 °C ~ 40 °C, < 80% RH
