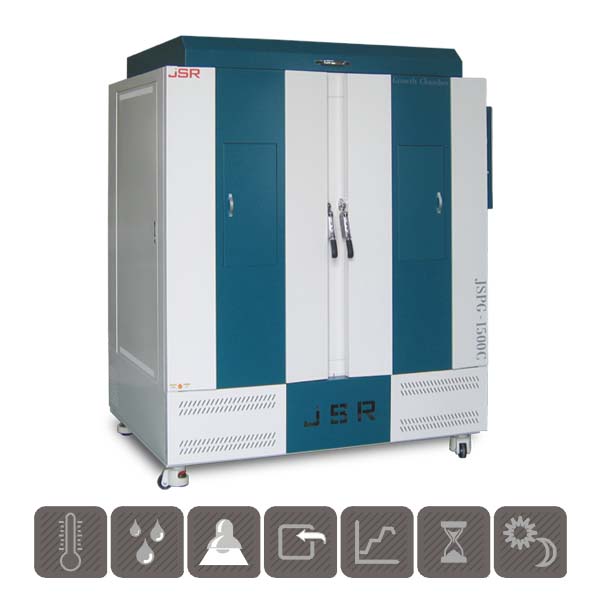

JSR JSPG-1500C 3-Side Illumination Plant Growth Chamber (1512 L; 0 ~ 50,000 Lux; 10.0 kW)

Chamber Volume (Capacity): 1512 Liters

Inner Dims. (W x D x H): 1400 x 900 x 1200 mm

Outer Dims. (W x D x H): 1880 x 1390 x 2065 mm

No. of Shelves Included: 8 EA

No. of Shelf Position: 35 EA by 25 mm Spacing

Heating: Forced Air Convection

Cooling: CFC Free Air Cooled Compressor

Control:

Program Mode: 1 Pattern Memory, 11 Segments

Manual Mode: Fixed Temp. Operation with Timer

Temp. Range: +0℃ ~ +60℃ (Light Off) / +10℃ ~ +60℃ (Light On), without Humidification

Accuracy: ±0.3℃ at +20℃, 60% RH, Light Off

Uniformity: ±1.0℃ at +20℃, 60% RH, Light Off

Temperature Sensor: Class A PT-100 Ω Sensor

Humidity Range: 30% ~ 85% RH

Humidity Accuracy: ±3.0% at 60% RH

Humidity Uniformity: ±6.0% at 60% RH

Humidity Sensor: Electronic Humiral Sensor

Illumination Range: 0 ~ 50,000 Lux by 8-Step Combination

Lamp Configuration:

Top: 6 ea x 150 Watt HQI Lamp

Side: 4 ea x 70 Watt HQI Lamp, 8 ea x 55 Watt Fluorescent Tube

Illumination Sensor: Built-in LUX Meter in Chamber

CO₂ Conc. Range: Ambient ~ 5,000 ppm (~0.5%)

CO₂ Accuracy: ±50 ppm

CO₂ Sensor: NDIR-Diffusion (Infra Red) CO₂ Sensor

CO₂ Remark: CO₂ Control Available Only When Optional CO₂ Control OHC-100 is Included

Safety:

Over-Temperature Cut-Off

Low Water Level Cut-Off

Over Current Cut-Off

Material:

Body: Epoxy Powder Coated Steel

Chamber: Stainless Steel 304

Electrical Requirement: 220 ±10% VAC, 50/60 Hz, 1-Phase

Heater Capacity: 10.0 kW

Power Rating: 55 amps

Plug Configuration: Supplied Without Plug to Connect to 60 Amp ELB Mains

Net Weight: 510 kg
