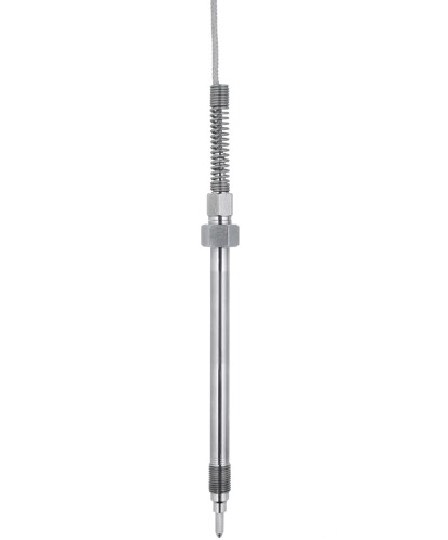

Jumo 90.2090 Screw-in melt RTD temperature probe (-50 ~ +400 °C, Part No: 90/00515674)

Name: Jumo 90.2090 Screw-in melt RTD temperature probe (-50 ~ +400 °C, Part No: 90/00515674)
Brand: Jumo

Model90.2090

P/N902090/10-402-1001-1-152-4-10-26-153-11-3000/000

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Order code: 902090/10-402-1001-1-152-4-10-26-153-11-3000/000

Operating temperature range in °C/cable type: -50 to +400°C/Metal braiding

Measuring insert: 1x Pt 100 in 3-wire-circuit

Tolerance class according to DIN EN 60751: Class B (standard)

Fitting length EL in mm: 152mm (Standard)

Probe tip shape: Blade

Probe tip length L in mm: 10 mm

Material/surface of the probe tip: 1.4571 (Standard)

Process connection: 1/2“x20 UNF

Cable termination: Ferrules as per DIN 46 228 Part 4 (Standard)

Connection cable length AL in mm: 3000mm

Extra codes: None

Screw-in melt RTD temperature probes are predominantly used for temperature measurement in the plastics industry and acquiring melt temperatures.
