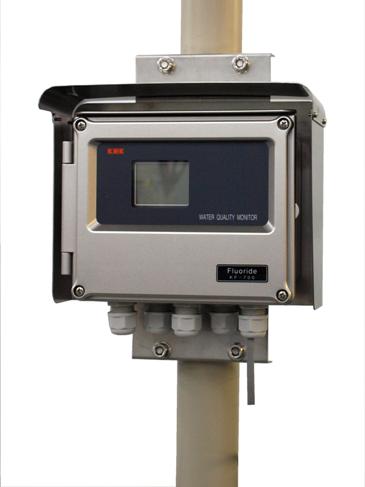

KASAHARA KF-700 Fluorine Ion Meter (0~1000mg/L)

Measuring principle: Fluoride ion electrode method

Indication: LCD 4-digit, 2-stage (backlight)

Measuring rangeFluoride ions: 0~1000mg/l

Water temperature: 0.0~50.0°C (temperature is displayed only)

Reproducibility: ± 2% FSmg/L or less (at constant temperature)

Temperature Compensation: Automatic temperature compensation with semiconductor temperature elements

Measured value shift function: ± 20 mg/L or less (function to match the measured value to the value for operation management)

Calibration function: Two-point calibration of 2 mg/L and 20 mg/L or 200 mg/L

Power supply voltage: AC85～240V、50/60Hz

Power Consumption: Approx. 10VA or less

Ambient conditions:

Temperature: -5~45°C

Humidity: 85%RH or less

External dimensions:

Instrument body: 215×170×95, Approx. 1.75kg (with mounting plate)

With hood: 244×196×105, Approx. 2.5kg (with mounting plate)
