Technical Data – Sizes

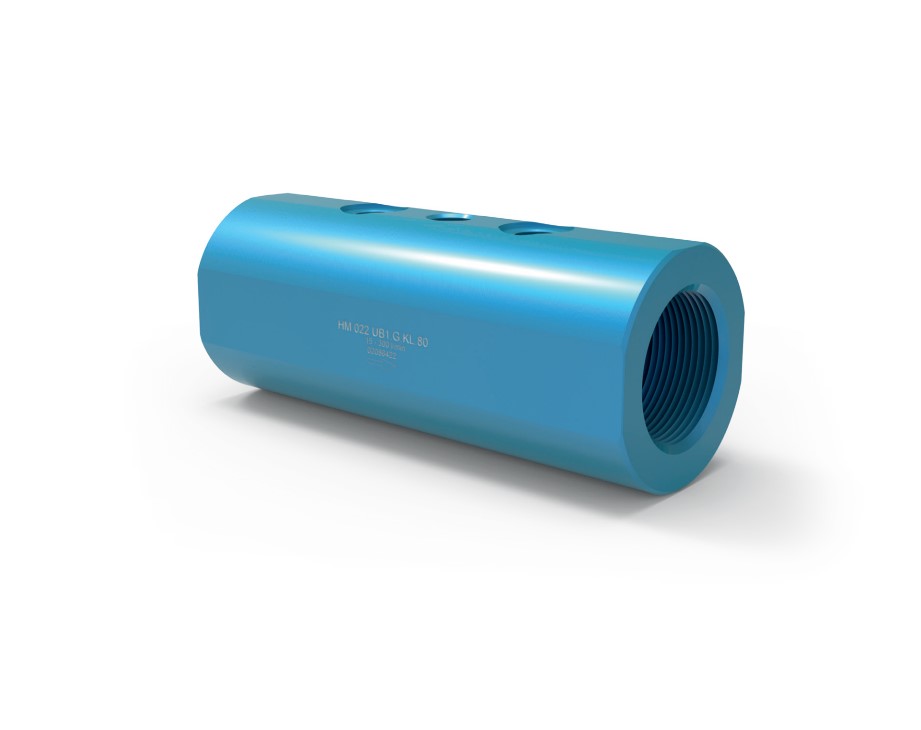

HM types: HM 030 U
Measuring Range (l/min): 40 - 600 L/min
K-Factor (pulses/l): 204 (pulses/l)
Max. Pressure: 420 [6,090] (bar/psi)
Max. Frequency (Hz): 860 Hz
Weight: 1.4 kg
Technical Data – General
Measuring Accuracy: ±0.5%
Repeatability: ±0.5 % (under the same condition)
Linearity: ±2.5 % of actual flow
Viscosity Range: 30 mm2/s
Materials
Housing: as per DIN 3.4365 [EN AW-7075]
Inner parts: as per DIN 1.4305 [AISI 303]
Wheels: as per DIN 1.4122 / 1.4104
Bearing: Stainless steel ball bearing
Medium Temperature: -40 °C up to +120 °C [-40 °F up to +248 °F]
Dimensions: See dimensional drawing
Suitable media: According to PED 2014/68/EU Media group according to Article 13 Group 2
See datasheet for choosing suitable configurations!
