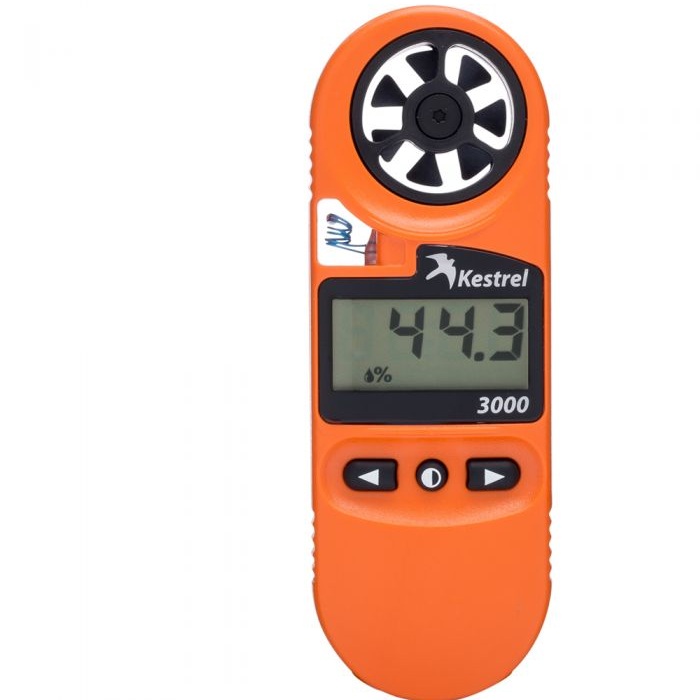

Name: Kestrel 3000HS Heat Stress Meter (0830ORA)
Brand: Kestrel

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

SENSORS

1
0
0
0

2
0
0
0

2
5
0
0

3
0
0
0

3
5
0
0

3
5
0
0
D
T

ACCURACY
(+/-)*

RESOLUTION

SPEC. RANGE

OP. RANGE

NOTES

Wind Speed | Air Flow

•

Larger of 3% of reading, least significant digit or 20 ft/min

0.1 m/s
1 ft/min
0.1 km/h
0.1 mph
0.1 knots
1 B*
0.1 F/S*

0.6 to 40.0 m/s
118 to 7,874 ft/min
2.2 to 144.0 km/h
1.3 to 89.5 mph
1.2 to 77.8 knots
0 to 12 B*
2-131.2 F/S*

0.6 to 60.0 m/s
118 to 11,811 ft/min
2.2 to 216.0 km/h
1.3 to 134.2 mph
1.2 to 116.6 knots
0 to 12 B*
2-196.9 F/S*

1 inch|25 mm diameter impeller with precision axle and low-friction Zytel® bearings. Startup speed stated as lower limit, readings may be taken down to 0.4 m/s | 79 ft/min | 1.5 km/h | .9 mph | .8 kt after impeller startup. Off-axis accuracy -1% @ 5º off-axis; -2% @ 10º; -3% @ 15º. Calibration drift < 1% after 100 hours use at 16 MPH | 7 m/s. Replacement impeller (NK PN-0801) field installs without tools (US Patent 5,783,753). Wind speed calibration and testing should be done with triangle on impeller located at the top front face of the Kestrel. *F/S only in Ballistics units. Beaufort not available in Ballistics units.

Ambient Temperature

•

0.9 °F
0.5 °C

0.1 °F
0.1 °C

-20.0 to 158.0 °F
-29.0 to 70.0 °C

14.0.0 to 131.0 °F
-10.0 to 55.0 °C

Hermetically sealed, precision thermistor mounted externally and thermally isolated (US Patent 5,939,645) for rapid response. Airflow of 2.2 mph|1 m/s or greater provides fastest response and reduction of insolation effect. Calibration drift negligible. Thermistor may also be used to measure temperature of water or snow by submerging thermistor portion into material -- remove impeller prior to taking submerged measurements and ensure humidity sensor membrane is free of liquid water prior to taking humidity-based measurements after submersion.

Relative Humidity

•

3.0 %RH

0.1 %RH

5 to 95%
non-condensing

0 to 100%

Polymer capacitive humidity sensor mounted in thin-walled chamber external to case for rapid, accurate response (US Patent 6,257,074). To achieve stated accuracy, unit must be permitted to equilibrate to external temperature when exposed to large, rapid temperature changes and be kept out of direct sunlight. Calibration drift +/- 2% over 24 months. Humidity sensor may be recalibrated at factory or in field using Kestrel Humidity Calibration Kit (NK PN-0802).

Pressure

•

1.5hPa|mbar
0.044 inHg
0.022 PSI

0.1 hPa|mbar
0.01 inHg
0.01 PSI

25°C/ 77°F
750-1100 hPa|mbar
22.15-32.48 inHg
10.88-15.95 PS

0.30 to 48.87 inHg
10.0 to 1654.7
hPa|mbar
0.14 to 24.00 PSI
and
14.0 to 131.0 °F
-10.0 to 55.0 °C

Monolithic silicon piezoresistive pressure sensor with second-order temperature correction. Pressure sensor may be recalibrated at factory or in field. Adjustable reference altitude allows display of station pressure or barometric pressure corrected to MSL. Kestrel 4200 displays station pressure on a dedicated screen. Kestrel 2500 and 3500 display continuously updating three-hour barometric pressure trend indicator: rising rapidly, rising, steady, falling, falling rapidly. Kestrel 4000 series displays pressure trend through graphing function. PSI display on Kestrel 4000 series only.

Compass

5°

1°
1/16th Cardinal
Scale

0 to 360°

2-axis solid-state magnetoresistive sensor mounted perpendicular to unit plane. Accuracy of sensor dependent upon unit's vertical position. Self-calibration routine eliminates magnetic error from batteries or unit and must be run after every full power-down (battery removal or change). Readout indicates direction to which the back of the unit is pointed when held in a vertical orientation. Declination/variation adjustable for True North readout.

CALCULATED MEASUREMENTS

MEASUREMENT

1
0
0
0

2
0
0
0

2
5
0
0

3
0
0
0

3
5
0
0

3
5
0
0
D
T

ACCURACY
(+/-)*

RESOLUTION

SPEC. RANGE

SENSORS EMPLOYED

NOTES

Altitude

•

typical:
23.6ft/7.2m
max:
48.2ft/14.7m

1ft
1m

typical:
750 to 1100 mBar
max:
300 to 750 mBar

Pressure User Input (Reference Pressure)

Height above Mean Sea Level ("MSL"). Temperature compensated pressure (barometric) altimeter requires accurate reference barometric pressure to produce maximum absolute accuracy. Both accuracy specs corresponds to a reference pressure anywhere from 850 to 1100 mBar.

Barometric Pressure

•

0.07 inHg
2.4 hPa|mbar
0.03 PSI

0.01 inHg
0.1 hPa|mbar
0.01 PSI

Refer to Ranges for Sensors Employed

Pressure User Input (Reference Altitude)

Air pressure that would be present in identical conditions at MSL. Station pressure compensated for local elevation provided by reference altitude. Requires accurate reference altitude to produce maximum absolute accuracy

Delta T

•

3.2 °F
1.8 °C

0.1 °F
0.1 °C

Refer to Ranges for Sensors Employed

Temperature
Relative Humidity
Pressure

Difference between dry bulb temperature and wet bulb temperature. When spraying, indicates evaporation rate and droplet lifetime. Safe range for pesticide spraying is 4 to 16 °F / 2 to 9 °C.

Dew Point

•

3.4 °F
1.9 °C

0.1 °F
0.1 °C

15 to 95 % RH
Refer to Range for Temperature Sensor

Temperature Relative Humidity

Temperature that a volume of air must be cooled to at constant pressure for the water vapor present to condense into dew and form on a solid surface. Can also be considered to be the water-to-air saturation temperature.

Heat Index

•

7.1°F
4.0°C

0.1 °F
0.1 °C

Refer to Ranges for Sensors Employed

Temperature Relative Humidity

Perceived temperature resulting from the combined effect of temperature and relative humidity. Calculated based on NWS Heat Index (HI) tables. Measurement range limited by extent of published tables

Wet Bulb Temperature - Psychrometric

•

1.6 °F
0.9 °C

0.1 °F
0.1 °C

Refer to Ranges for Sensors Employed

Temperature
Relative Humidity
Pressure

Temperature indicated by a sling psychrometer. Due to nature of the psychrometric ratio for a water-air system, this approximates the thermodynamic wet-bulb temperature. The thermodynamic wet-bulb temperature is the temperature a parcel of air would have if cooled adiabatically to saturation temperature via water evaporating into it.

Wind Chill

•

1.6 °F
0.9 °C

0.1 °F
0.1 °C

Refer to Ranges for Sensors Employed

Wind Speed
Temperature

Perceived temperature resulting from combined effect of wind speed and temperature. Calculated based on the NWS Wind Chill Temperature (WCT) Index, revised 2001, with wind speed adjusted by a factor of 1.5 to yield equivalent results to wind speed measured at 10m above ground. Measurement range limited by extent of published tables.

ADDITIONAL SPECIFICATIONS

MEASUREMENT

1
0
0
0

2
0
0
0

2
5
0
0

3
0
0
0

3
5
0
0

3
5
0
0
D
T

NOTES

Display & Backlight

•

Reflective 3 1/2 digit LCD. Digit height 0.36 in / 9 mm. Aviation green electroluminescent backlight. Manual activation with auto-off

•

Reflective 5 digit LCD. Digit height 0.36 in / 9 mm. Choice of aviation green or visible red (NV models only) electroluminescent backlight. Manual activation with auto-off.

Response Time & Display Update

•

All measurements except those based on relative humidity respond accurately within 1 second. Relative humidity and all measurements which include RH in their calculation may require as long as 1 minute to fully equilibrate to a large change in the measurement environment. Display updates every 1 second.

Max/Avg Wind

•

One-button clear and restart of Max Wind Gust and Average Wind measurement.

Data Upload & Bluetooth® Data Connect Option

Requires optional PC interface (USB or RS-232) or Bluetooth data transfer option and provided software.
Bluetooth Data Transfer Option: Adjustable power consumption and radio range from up to 30 ft | 9 meters. Individual unit ID and 4-digit PIN code preprogrammed for easy identification and data security when pairing and transmitting. Employs Bluetooth Serial Port Protocol for data transmission.

Clock / Calendar

•

Real-time hours:minutes clock.

Auto Shutdown

•

After 45 minutes of no key presses.

Languages

English

Certifications

•

CE certified, RoHS and WEEE compliant. Individually tested to NIST-traceable standards (written certificate of tests available at additional charge).

Origin

•

Designed and manufactured in the USA from US and imported components. Complies with Regional Value Content and Tariff Code Transformation requirements for NAFTA Preference Criterion B.

Battery Life

•

CR2032, one, included. Average life, 300 hours. Battery life reduced by backlight use in 2000 to 3500 models.

Shock Resistance

•

MIL-STD-810g, Transit Shock, Method 516.6 Procedure IV; unit only; impact may damage replaceable impeller.

Sealing

•

Waterproof (IP67 and NEMA-6).

Operational Temperature Limits

•

14° F to 131° F | -10 °C to 55 °C Measurements may be taken beyond the limits of the operational temperature range of the display and batteries by maintaining the unit within the operational range and exposing it to the more extreme environment for the minimum time necessary to take reading.

Storage Temperature

•

-22.0 °F to 140.0 °F | -30.0 °C to 60.0 °C.

Size & Weight

•

4.8 x 1.9 x 1.1 in / 12.2 x 4.8 x 2.8 cm, 3.6 oz / 102 g (including slip-on cover).
