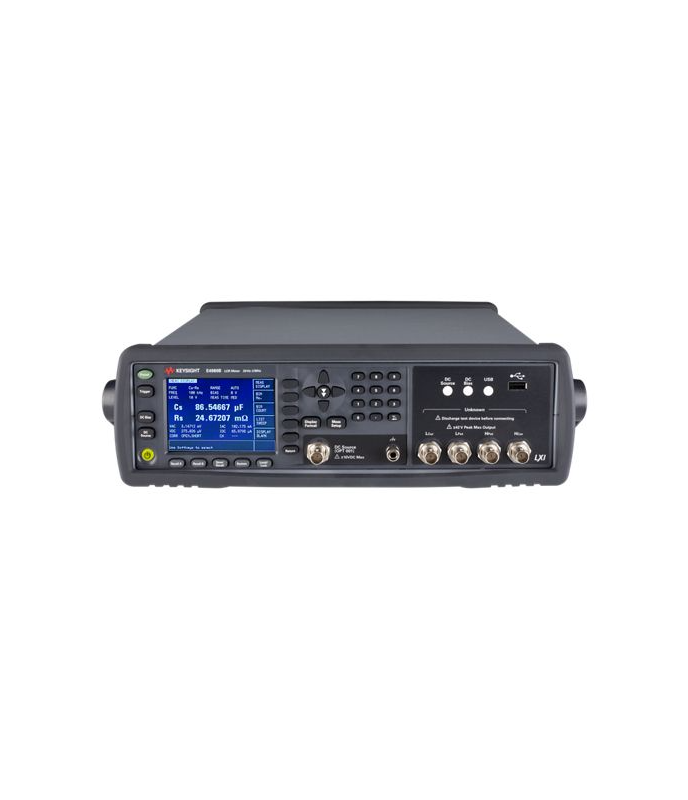

Frequency range: 20 Hz to 1 MHz
Measurement parameters
Cp-D, Cp-Q, Cp-G, Cp-Rp
Cs-D, Cs-Q, Cs-Rs
Lp-D, Lp-Q, Lp-G, Lp-Rp, Lp-RDC
Ls-D, Ls-Q, Ls-Rs, Ls-RDC
R-X
Z-θd, Z-θr
G-B
Y-θd, Y-θr
Test frequencies: 20 Hz...1 MHz
Resolution: 0.01 Hz (20 ~ 99.99 Hz), 0.1 Hz (100 ~ 999.9 Hz), 1 Hz (1 ~ 9.999 kHz), 10 Hz (10 ~ 99.99 kHz), 100 Hz (100 ~ 999.9 kHz)
Measurement accuracy: ±0.01%
Test signal level:
Voltage range 0...20 VRMS (≤1 MHz), 0...15 VRMS(>1 MHz);
Current range 0...100 mARMS
Measurement display ranges
Cs, Cp: ±1.000000 aF ~ 999.9999 EF;
Ls, Lp: ±1.000000 aH ~ 999.9999 EH;
D: ±0.000001 ~ 9.999999;
Q: ±0.01 ~ 99999.99;
R, Rs, Rp, X, Z, RDC: ±1.000000 aΩ ~ 999.9999 EΩ; G, B, Y: ±1.000000 aS~ 999.9999 ES;
VDC: ±1.000000 aV ~ 999.9999 EV;
IDC: ±1.000000 aA ~ 999.9999 EA;
θr: ±1.000000 arad ~ 3.141593 rad;
θd: ±0.0001 ~ 180.0000 deg;
Δ%: ±0.0001 ~ 999.9999%
(Note: a -> 1x 10-18, E -> 1x 1018)
Power and DC bias enhancement: Not Installable
DCR measurement: Equipped by default
Handler interface: Installable
Scanner interface: Installable
Display: LCD, 320x240 (pixels), RGB color
The following items can be displayed: Measurement value, measurement conditions, limit value and judgment result of comparator, list sweep table, self-test message
Interfaces: LAN/Ethernet, USB, GPIB
Dimensions (mm): 375 x 105 x 390; approx. 5.3 kg
