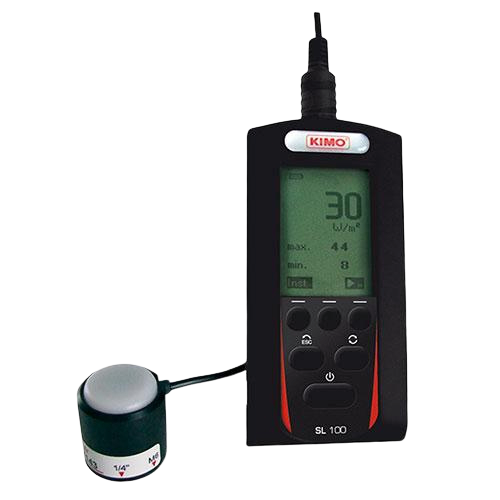

Sauermann SL100 Solarimeter

Solar irrigation measuring range: from 1 W/m2

to 1300 W/m2

Energetic exposure measuring range: from 1 Wh/m2

to 500 kWh/m2

Frequency of measurement: 2 / s

Accuracy: 5% of measurement

Calculation frequency (W/m2): 1 / min (average on 60 seconds)

Capacity of measurement (Wh/m2) 3 days – Results saved when

instrument is switched off

Operating temperature: from -10°C to +50°C

Storage temperature: from -10°C to +55°C

Housing dimensions: 58 x 120 x 33 mm

Autonomy: more than 72 hours in continuous mode,

when using a power supply adapter

Power supply: 3 LR3-AAA batteries

Electronic: Digital

Electronic board: Varnish

Conformity: in accordance with RoHS directives

Spectral response: from 400 to 1100 nm

Nominal sensitivity: 100mv for 1000W/m2

Response in cosine: corrected until 80°

Coefficient in temperature: +0,1%/°C

Effective area:1 cm2

Operating temperature: from -30°C to +60°C

Humidity dependence: 100% RH

UV performance: excellent (PMMA filter)

Mode: photovoltaic

Material: polycristallin silicon

Front face: translucent PMMA

Tightness:Polyurethane resin and housing in PMMA

and polyacetol

Cell weight: 60g

Cell dimensions: 30 x 32 mm

Cable length:1,25 m (can be unplugged)
