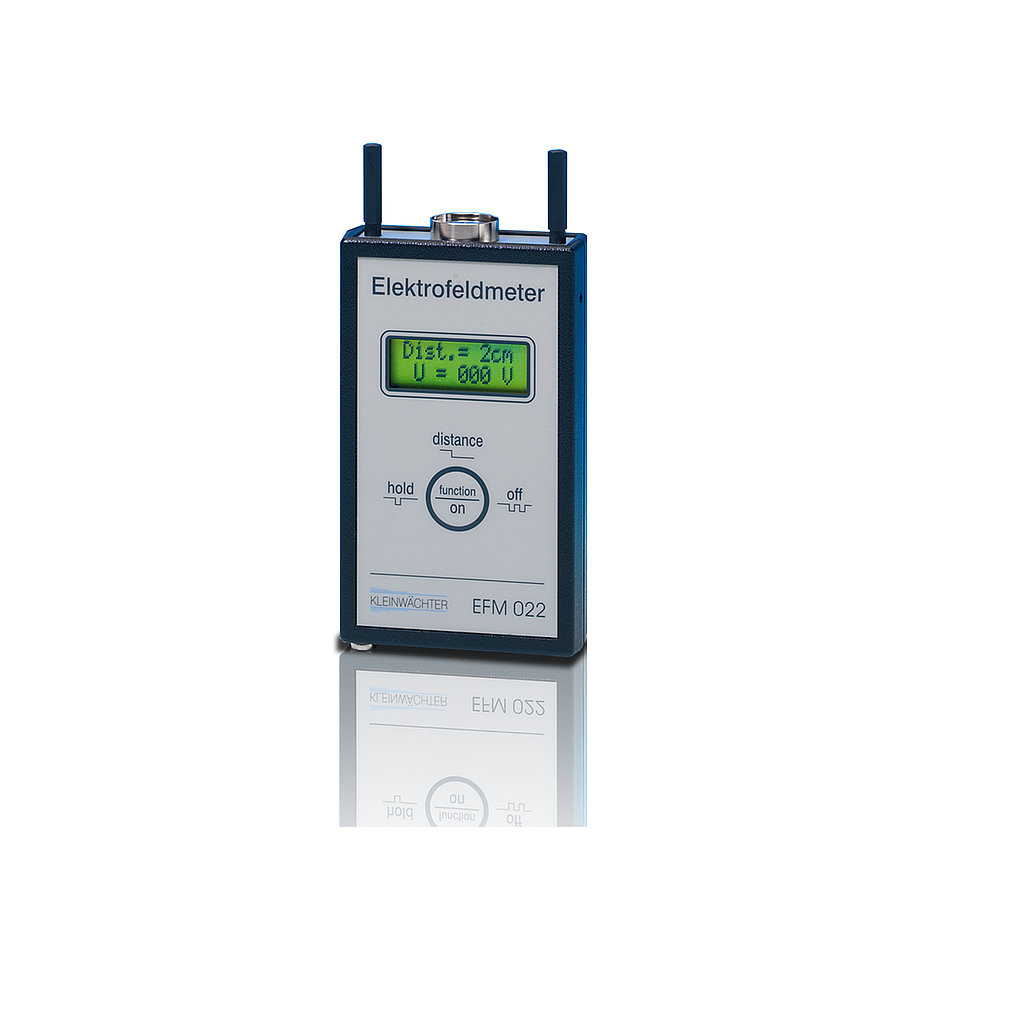

KLEINWACHTER EFM 022 AKC Electro Field Meter (± 20kV / m; ± 200kV / m, ± 1MV / m)

E-Field Meter Ranges:

manual selected.

± 20kV/m; ± 200kV/m und ± 1MV/m

Measurement ranges:

distance 1cm:0 to 10kV

distance 2cm:0 to 20kV

distance 5cm:0 to 50kV

distance 10cm:0 to 100kV

distance 20cm:0 to 200kV

Dimensions:122mm x 70mm x 26mm ( L x W x H )

Weight:approx. 130 g (without battery)

Power supply:9V Alkali battery IEC 6F22

2-line alphanumeric LC-display with 12 digits each

The measurement distance in cm will be displayed in the first line.

The voltage potential will be indicated in volts in the second line.

EFM 022 with Volt-Meter-Set VMS023 for walking test conform to EN 63410 including the CP2 022 Set all in a stabil Aluminium Case
