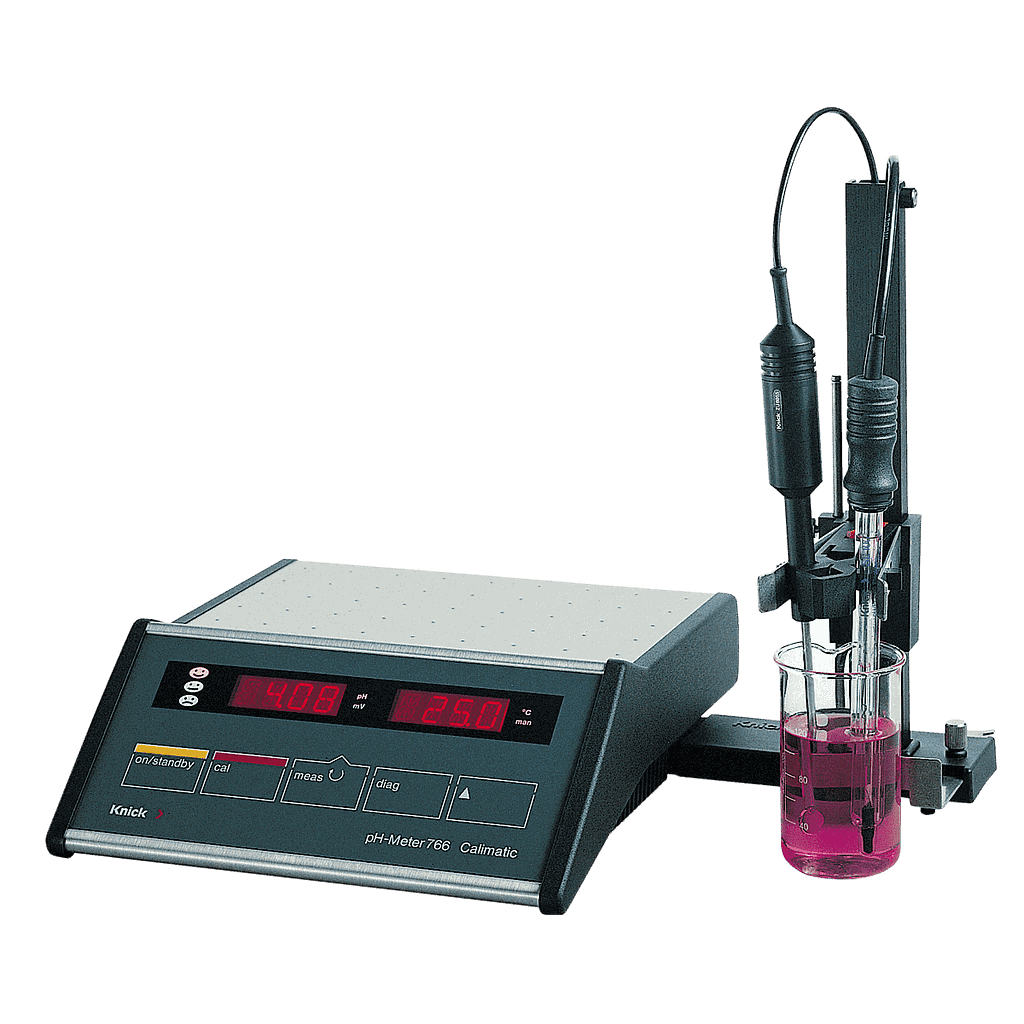

Knick 766 Ph Meter (–2.00 ~ +16.00pH)

Ranges:

pH: –2.00 ~ +16.00

mV: –1999 ~ +1999

°C: –50.0 ~ +150.0

Display:

Alphanumeric 2 x 4stellig

14-segment LED

character height 13 mm

Measurement symbols pH/mV/ºC/man

3 Sensoface icons inform on the condition of electrode and measuring equipment (GLP)

Measuring cycle: Approx. 1,5/s

Accuracy:

pH < 0.01

mV < 0.1 % ± 0.3 mV

°C < 0.3 K

Input: DIN 19262

Input resistance: > 1 x 10^12 Ohm

Input current (20 ºC)2) < 1 x 10^–12 A

Temperature coefficient: < 0.1 count / K

Surrounding Conditions:

Ambient temperature: 0~+45 °C/ +32~+113 °F

Storage and transport temp: –20~+70°C / –4~+158°F

Power supply: 230 V –15 % +10 %, 48~62 Hz, <10 VA optional 115 V AC (Opt. 363)

Sensor connection: The meter allows connection of any commercial electrodes with DIN plug or

banana plug

Enclosure: Glass-reinforced polyamide 12, stainless steel cover, IP 54 protection, prepared for

connecting ZU 6954 attachable stand

Dimensions (W x H x D): 244 x 95 x 255 mm / 9.61 x 3.74 x 10.04 inches

Weight: Approx. 2 kg / 4.41 lbs
