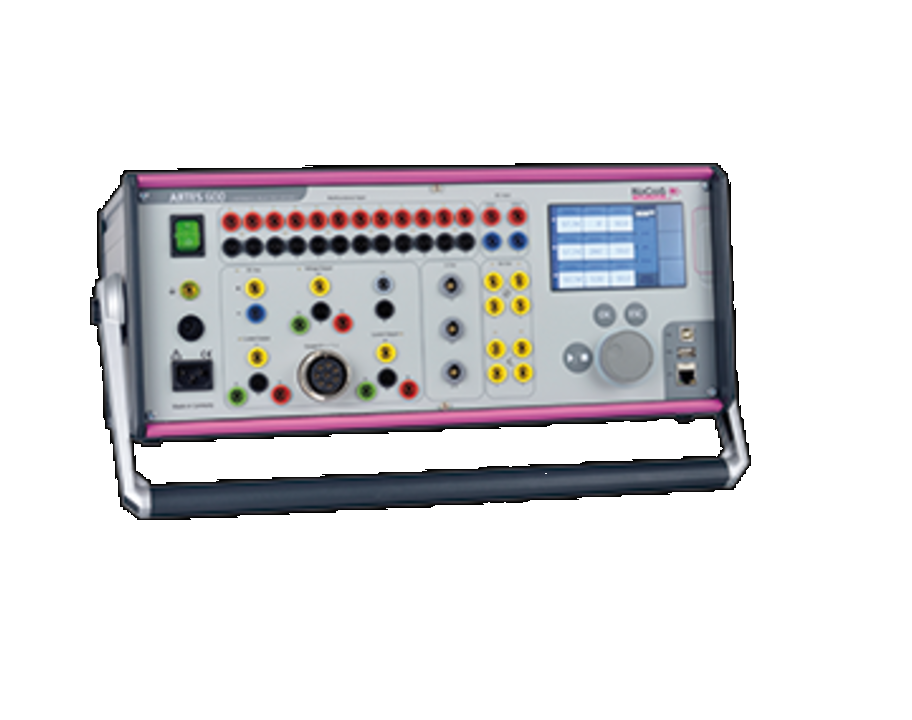

KoCoS ARTES 600 Protection Relay Testing (DC…3 kHz)

Sources: 4 voltage and 6 current outputs

Frequency range: DC…3 kHz

Transient signals: DC…4 kHz

Phase angle: 0…360°

Voltage outputs – 4-phase (L-N): 4 × 0…300 V / 75 VA

Voltage outputs – 1-phase (L-L): 1 × 0…600 V / 150 VA

Current outputs – 6-phase: 6 × 0…32 A / 250 VA

Current outputs – 3-phase: 3 × 0…64 A / 500 VA

Current outputs – 1-phase: 1 × 0…96 A / 500 VA

Low-level signal outputs: 10 separately and independently adjustable outputs, output range 0…10 Vpk

DC output: 12…260 VDC, 50 W, max. 2 A

Analog inputs: 2 × 0…±20 mA

Multi-function inputs: 12 inputs in 6 galvanically isolated groups

Measuring ranges: 2 / 10 / 300 / 600 VAC / DC

Frequency range (inputs): DC…10 kHz

Response threshold/range: Freely adjustable or potential-free contact

Binary outputs: 2 potential-free, galvanically isolated relays

Binary outputs: 2 transistor outputs

Operation – PC: ARTES testing software for Windows® 7/8/10/11

Operation – Stand-alone: 5" touch screen, 3 function keys, jog wheel

Measurement connections: All connections located on the front panel, device can be operated upright

Interfaces: USB, 3 × Ethernet, Wi-Fi

Time synchronization: Internal GPS receiver

Status LEDs: Indication of active current and voltage outputs and status of the binary inputs and outputs by LEDs

Supply voltage: 100…265 VAC, 47…63 Hz / 120…265 VDC

Housing: 19" housing, 4U, handle serves as stand

Dimensions: 470 × 202 × 326 mm (W × H × D)

Weight: 15.9 kg
