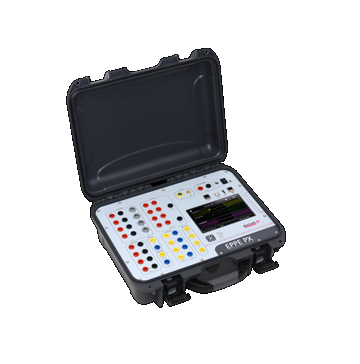

KoCoS EPPE PX Power Quality Analyzer

Display: 5 status LEDs

Operation: EPPE operating software for Windows 7, 8.1, 10 (32 and 64 bit)

Memory: 4 GB flash RAM for measurement data; 512 MB flash RAM for firmware

Interfaces: 1 × 10/100 Mbit Ethernet (RJ45), 1 × USB-A, 1 × USB-B

Supply voltage: 100…240 VAC (100…350 VDC), 47…63 Hz

Analog inputs: 4 × voltage up to 600 VAC / ±848 VDC, 4 × current up to 32 AAC, Sampling rate 200 kHz

Binary inputs: 8 (2 groups with separate reference points)

Binary outputs: 2 × potential-free relay contact (NO contact)

Standards: EN 61010-1; EN 61000-6-4; EN 61000-6-2; IEC 61000-4-30 Class A; IEC 61000-4-7 (harmonics & interharmonics); IEC 61000-4-15 (flicker); EN 50160; IEEE 519; IEEE 1159
