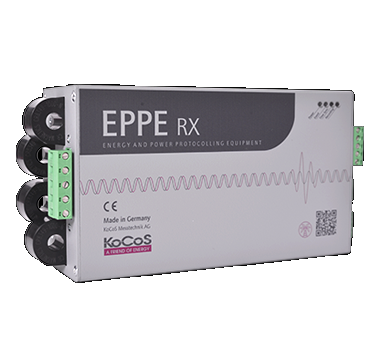

KoCoS EPPE RX Power Quality Analyzer

Display: 4 status LEDs

Operation: Web server; Operating software

Memory: 32 GB flash

Synchronization: GPS, PPS, NTP/SNTP, IRIG-B, KoCoS Interlink

Interfaces: 1 × RS 232, 1 × RS 485, 1 × USB, 2 × Ethernet (RJ45)

Supply voltage: 85...265 VAC, 47...63 Hz; 100...250 VDC; +6%, -15% of nominal range

Analog inputs: 4 × voltage up to 600 V (L-N), 4 × current up to 5 A, Sampling rate 200 kHz

Binary inputs: 4 inputs

Binary outputs: 2 × relay changeover contacts

Design: Aluminium DIN-Rail housing, Protection class IP20, Dimensions 220 × 110 × 80 mm

Standards: EN 50160; IEC 61000-4-7; IEC 61000-4-15; IEC 61000-4-30 Class A
