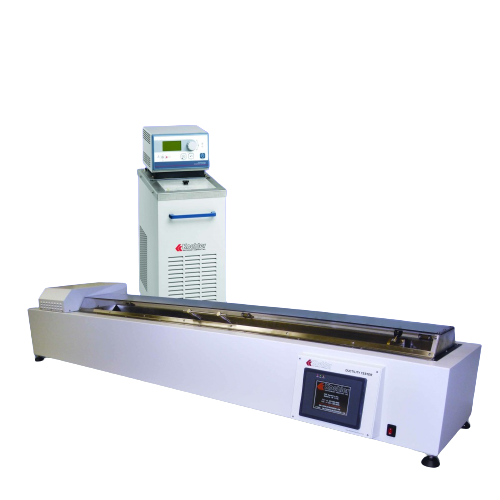

Koehler K80069 Semi-Automatic Constant Ductility Testing Machine (3 molds)

Determines the ductility of a bituminous material

Specifications

- Conforms to the specifications of:

ASTM D113, D5892, D6084, P226; IP 32, 516; DIN 52013, EN 13398; NF T 66-006; AASHTO T 51, T 301; JIS K2207; ANS A37.11; Federal Specification SS-R-406C; USDA Method 5 (BUL 12-16)

- Capacity: 3 molds with samples

- Maximum travel length: 150 cm

- Standard traction speed: 5 cm/min

- Variable traction speed: 0.25 to 7.0 cm/min

- Timer: 1-999 min

Electrical requirements: 220-240V 50Hz

Dimensions

- lxwxh,in.(cm): 861⁄4x19x16 (219.1x48.3x40.6)

Circulation bath: 153⁄4x81⁄4x221⁄2 (219.1x48.3x40.6)

- Net weight: 217 lbs (98.5kg)

Circulation bath: 50 lbs (22.7kg)

Shipping information

- Shipping weight: 368 lbs (167kg)

- Dimensions: 9 3⁄4x 25 1⁄4x 23 1⁄4” (235.6x64.1x59.1cm)

Included accessories

- Circulation Bath

- Remote Temp. Probe, 10 ft. length

- Connection Tubing

- Standard Mold (3)

- Base Plate

- Lexan Cover

Additional accessories

- K80012 Standard Mold

- K80041 Recovery Mold

- K80013 Base Plate

- 250-000-63F ASTM 63F Thermometer, Range: 18 to 89°F

- 250-000-63C ASTM 63C Thermometer, Range: -8 to 32°C

- K80050-SFW Semi-Automatic Ductility Software
