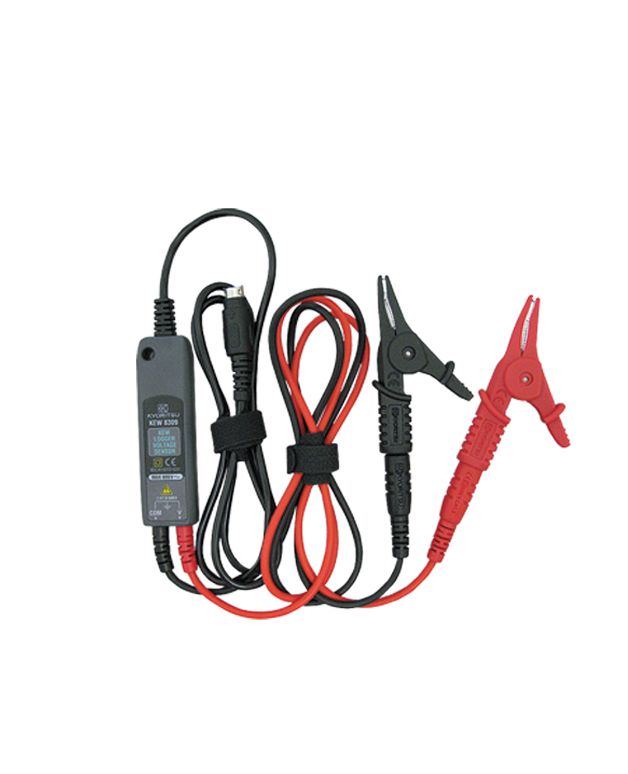

KYORITSU KEW 8309 Voltage Sensor (6 - 600V)

Max. input voltage: AC 600Vrms(sin) , 848.4Vpeak

Input system: Differential input (can measure floating voltage)

Output voltage: AC 0 - 60mV (output/input: 0.1mV/V)

Measuring ranges: 6 - 600V

Accuracy (Frequency range): ±1.0%rdg±0.1mV (50/60Hz)

Input impedance: Approx. 3.4MΩ

Output impedance: Approx. 180Ω

Output connector: MINI DIN 6PIN

Applicable standards: IEC 61010-1 CAT Ⅲ 600V pollution degree 2

IEC 61010-031, IEC 61326 (EMC)

Location for use: Altitude up to 2000m , Indoors

Operating temperature and humidity range: -10 - 50ºC , relative humidity 85% or less (no condensation)

Dimension: 87(L)×26(W)×17(D)mm (excluding protrusions)

Weight: Approx. 135g

Accessories: Instruction manual

Optional Accessories: 7185 (Extension cable)
