Gain: 0.2 dBi, 1 dBi, 1.5 dBi, 3.6 dBi, 3.5 dBi, 2.9 dBi, 3.2 dBi, 4 dBi, 5.1 dBi
VSWR: 1.7, 1.8, 2.1, 4.9, 3.9, 3.9, 3.9, 4.7, 7.2

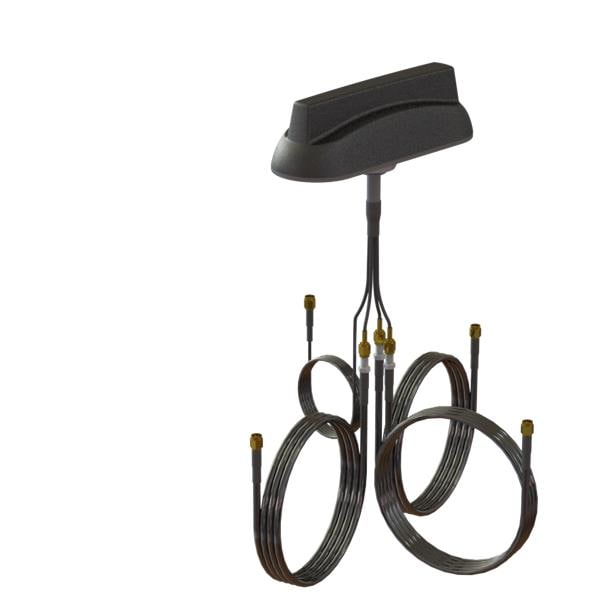

Style: Sharkfin
Width: 63 mm
Height: 48 mm
Length: 179 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 1 ft LMR100 x 2, 17 ft LMR195 x 2
Application: FirstNet/Public Safety, Transportation, Aftermarket Fleet, 5G Ready, Rugged LTE Gateways, Others
Cable Length: 0.3 m, 4.9 m
Polarization: Linear - Vertical
Power Rating: 30 W
Mounting Style: Direct / Permanent Mount
Electrical Type: Active
Number of Bands: 12 Band
Center Frequency: 752 MHz, 859 MHz, 920 MHz, 1785 MHz, 1920 MHz, 2045 MHz, 2400 MHz, 2600 MHz, 3550 MHz, 1561.098 MHz, 1575.42 MHz, 1602 MHz
Mechanical Style: Module
Maximum Frequency: 3.8 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Protocol - Sub GHz: ISM
Antenna Connector Type: SMA Male
Protocol - WiFi - 802.11: 802.11, WLAN, WiMAX
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
Protocol - Cellular, NBIoT, LTE: 3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, CBRS
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
