Gain: 0.4 dBi, 0.8 dBi, 1.2 dBi, 4 dBi, 2.6 dBi, 6.6 dBi, 2 dBi, 2 dBi, 2dBi
VSWR: 1.7, 1.8, 1.9, 1.5, 1.5, 1.2, 2, 2, 2

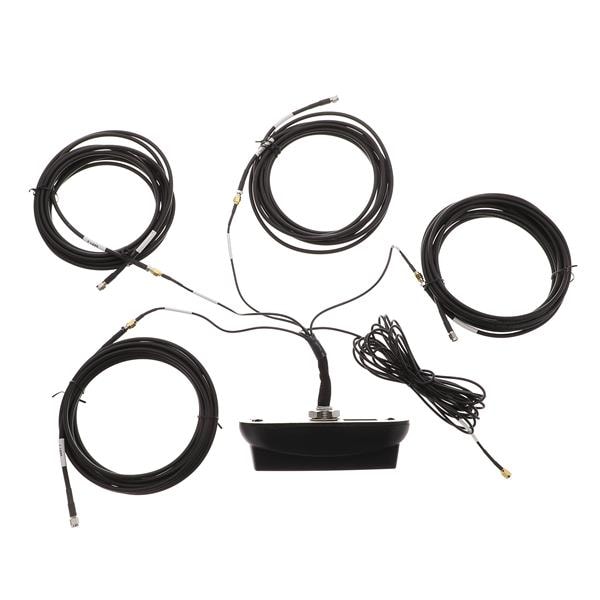

Style: Sharkfin
Width: 63 mm
Height: 48 mm
Length: 179 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 1 ft LMR100 x 4, 17 ft RG174
Application: FirstNet/Public Safety, Transportation, Aftermarket Fleet, 5G Ready, Rugged LTE Gateways, Others
Unit Weight: 1.418 kg
Cable Length: 5.18 m
For Use With: Aftermarket fleet, FirstNet/Public Safety, Rugged LTE Gateways, Transportation
Polarization: Linear - Vertical
Power Rating: 10 W
Mounting Style: Direct / Permanent Mount
Electrical Type: Active
Number of Bands: 9 Band
Center Frequency: 752 MHz, 859 MHz, 920 MHz, 2745 MHz, 2450 MHz, 5450 MHz, 1561.098 MHz, 1575.42 MHz, 1601.97625 MHz
Mechanical Style: Module
Maximum Frequency: 6 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Protocol - Sub GHz: ISM
Antenna Connector Type: SMA Male
Protocol - GPS, GLONASS: BEIDOU, GNSS, GPS
Protocol - WiFi - 802.11: 802.11, WLAN, WiMAX
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
Protocol - Cellular, NBIoT, LTE: 3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, CBRS
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
