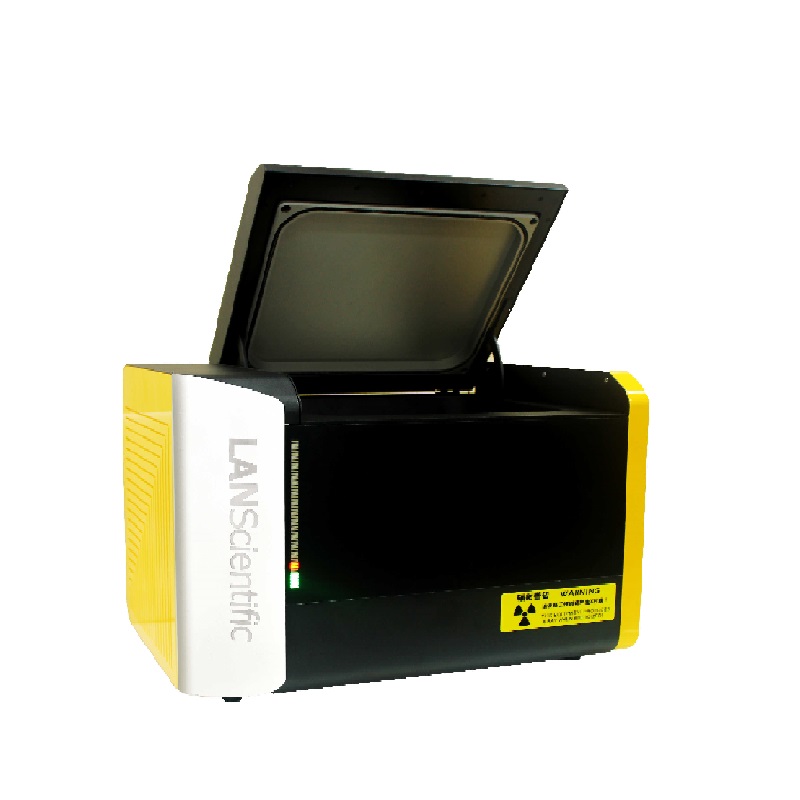

LANScientific ScopeX 980CS Universal XRF Analyzer

Measurement: X-ray fluorescence analysis

Determination method: Energy dispersion type

Determination of the object: Solid, liquid, powder

Range of measurement: 11Na-92U

Equipment size: W570mm x D402mm x H400mm

Equipment weight: 47kg

Sample room size: W368mm x D304mm x H78mm

Openway: The automatic control

X - ray generating department

X-ray tube: High power side window X-ray tube

Target materials: Target W (standard), Au, Ag, Rh (optional)

Voltage: 5-50KV

Current: 0-1000μA

Cooling way: Air cooling

Collimator: 5mm，3mm，1mm，0.5mm switch over automatically

Detector

Type: Large area SDD

Cooling way: Peltier cooling

Resolution ratio: <125eV

Sample room

Measurement situation: Atmosphere, Vacuum, Helium

Sample observation: 5 megapixel high-definition industrial camera

Computer configuration (including printer)

Host: Lenovo PC

Memory: DDR4 4G or above

Hard disk capacity: 1 TBHDD /256 GB SSD or above

OS: Windows 10

Environment setup

Temperature conditions: 10℃ - 35℃

Relative humidity: 40-70% (no dew)

Power supply: AC 220V±5V 50Hz

Rated power: 100W
