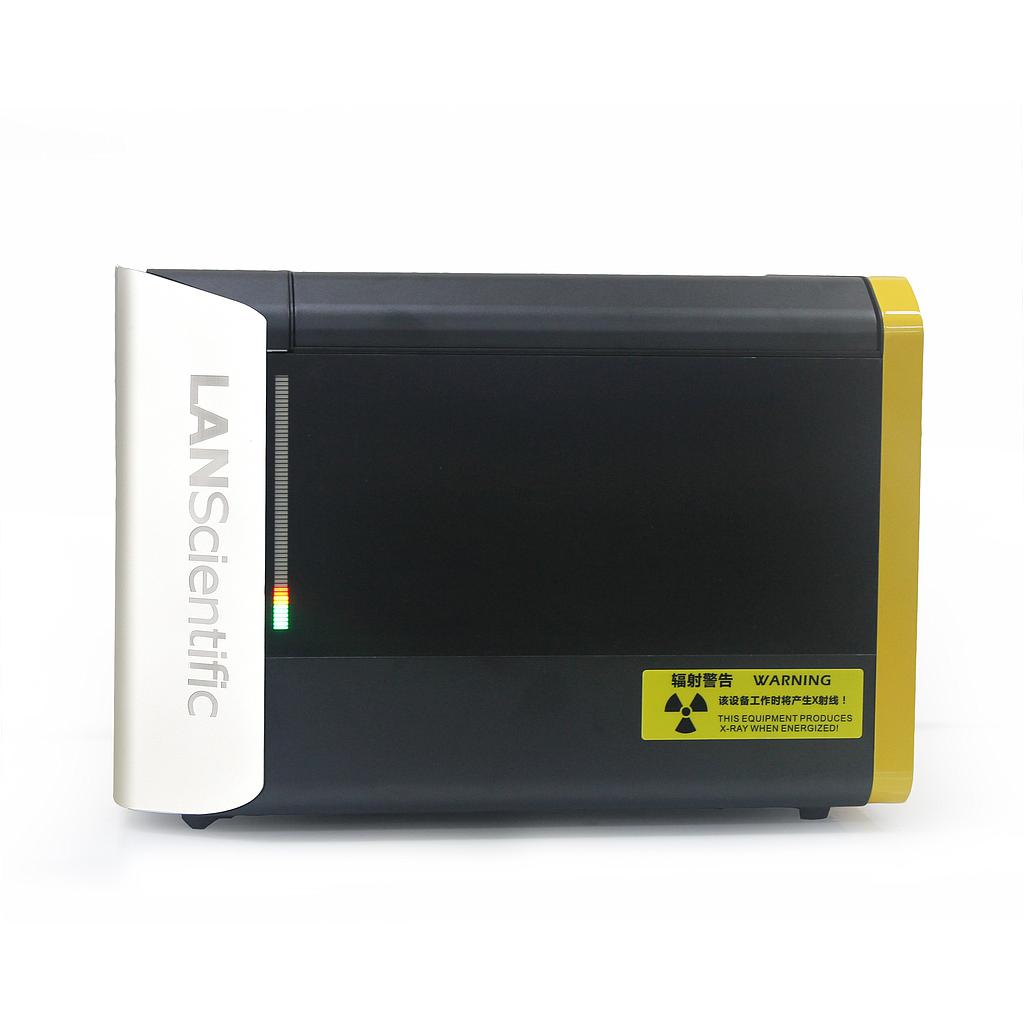

Measurement: X-ray fluorescence analysis
Determination method: Energy dispersion type
Determination of the object: Solid, liquid, powder
Range of measurement: All the elements from sodium to uranium. It can analyze Fe, Ca, Mg, K, Na, Mn, P, Si, Al, Ti, S, and other elements, and the elements
can also be added or modified by the user to suit the use of specific environment.
Equipment size: W570mm x D400mm x H400mm
Equipment weight: 47kg
Sample room size: W368mm x D304mm x H78mm
Open way: The automatic control
X-ray generating department
X-ray tube: High-performance miniature X-ray tube
Target materials: Target W/Ag/Rh
Voltage: 5-50KV
Current: 0-1000μA
Cooling way: Air cooling
Collimator: 5mm, 3mm, 1mm, 0.5mm switchover automatically
Detector
Type: BOOST SDD
Cooling way: Peltier cooling
Resolution ratio: ≤125ev
Sample room
Measurement situation: Atmosphere, Vacuum, Helium
Sample observation: 5 megapixel high-definition industrial camera
Sampler: Manual filling (ScopeX ASH 980CS)
Automatic filling (ScopeX ASH 980CSR)
