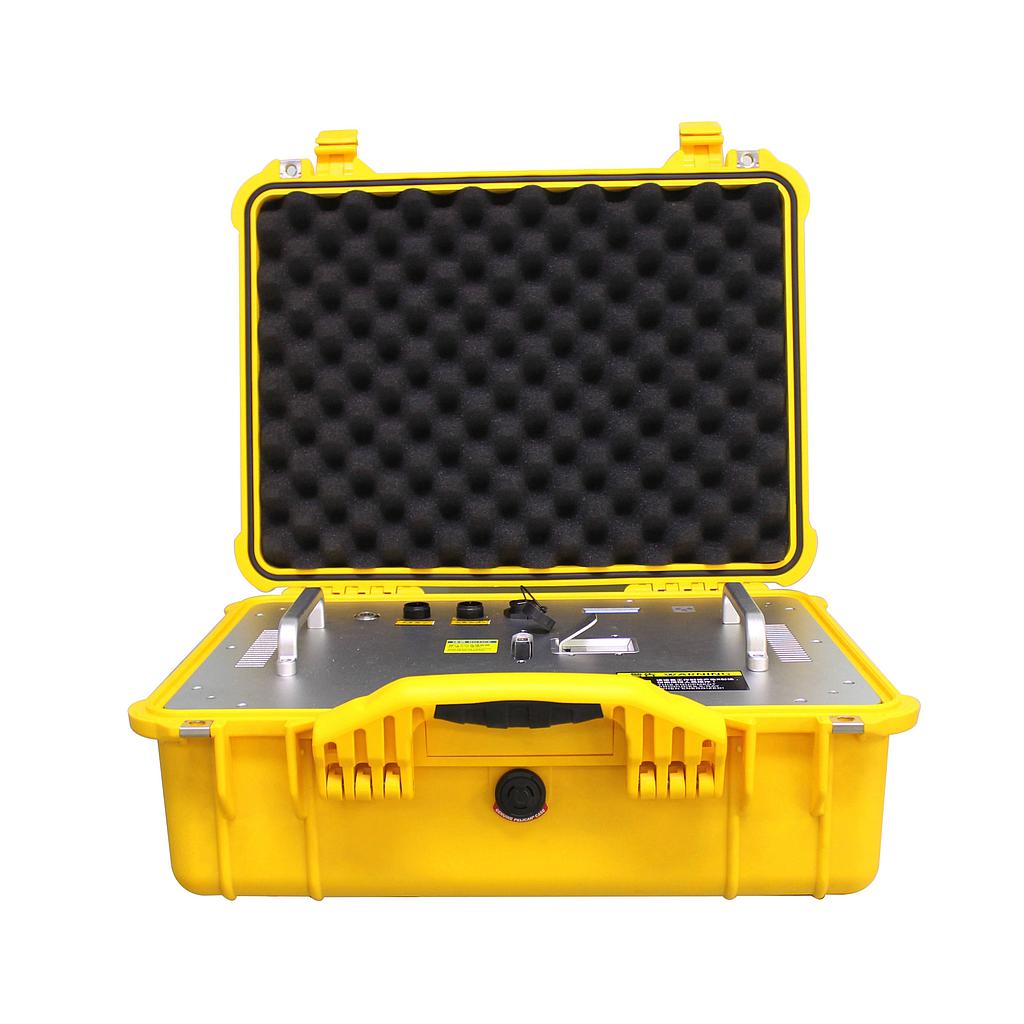

LANScientific Shine Portable XRD Analyzer

XRD resolution: 0.2° @2 θ FWHM

Scope of XRD: 5-55° 2 θ

The detector: 2000 X 256 pixels, 2-D, 3-level Pelter cooled CCD

X-ray tube target material: Cu or Co, Cr, Fe, Ni, Mo, Ag, W target (optional)

X-ray tube voltage: 50kV maximum, 0-50kV adjustable

X-ray tube power: 50W maximum, 0-50W adjustable

XRF energy resolution: 127eV@8keV

XRF detection range: Magnesium (Mg) Uranium (U)

Sample particle size: <150um

Sample weight: About 20 mg

Working temperature: - 10 ° C - 35 ° C

The power supply: Common AC power supply (no cooling system)

Size: 500*400*188mm

CrystalX analysis software language: Chinese, English, etc
