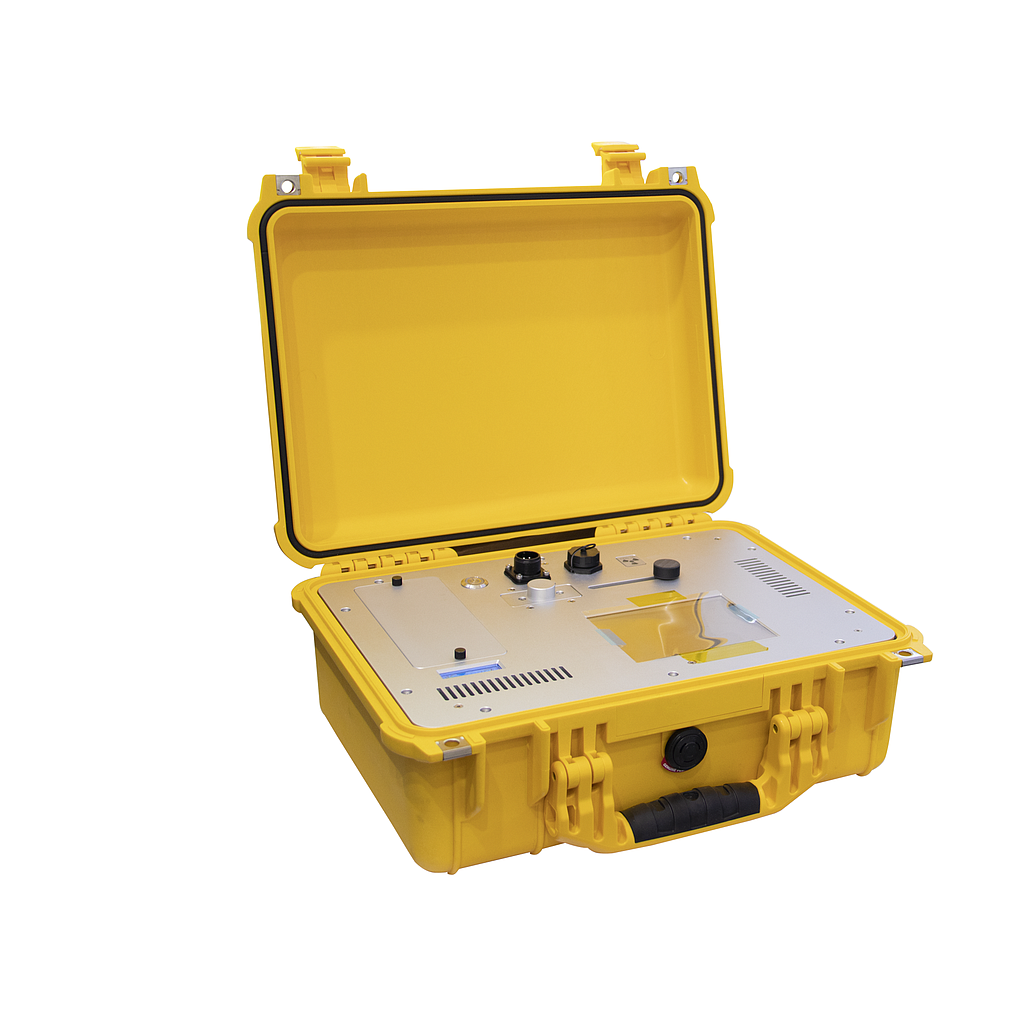

LANScientific YANG Portable Single-wavelength XRF Analyzer

Size (mm): 418mm × 330mm × 173mm

Excitation source: High-power X-ray tube

X-ray tube target material: Cu target (standard), Co, Cr, Fe, Ni, Mo, Ag, W target (optional)

X-ray tube power: 50 W

Crystal: Hyperboloid curved crystal

Detector: 2 stage Peltier refrigerated SDD detectors

Scope of element: Magnesium (Mg) to uranium (U)

Battery: lithium battery

Working temperature: - 20 ℃ to 50 ℃

Working humidity: 20%~90%RH

Data output: USB, Bluetooth, WiFi, GPS, 4G communication

Measuring time: 30-600S

Resolution: optimal 125 ev

Weight: 12KG

Analytical system language: Chinese, English, etc

System processor: I.MX6 Quad quad-core Cortex-A9 processor, 80MHz ADC digital pulse processor, 4096 MCA channel, 32GB of memory

Datasheet
