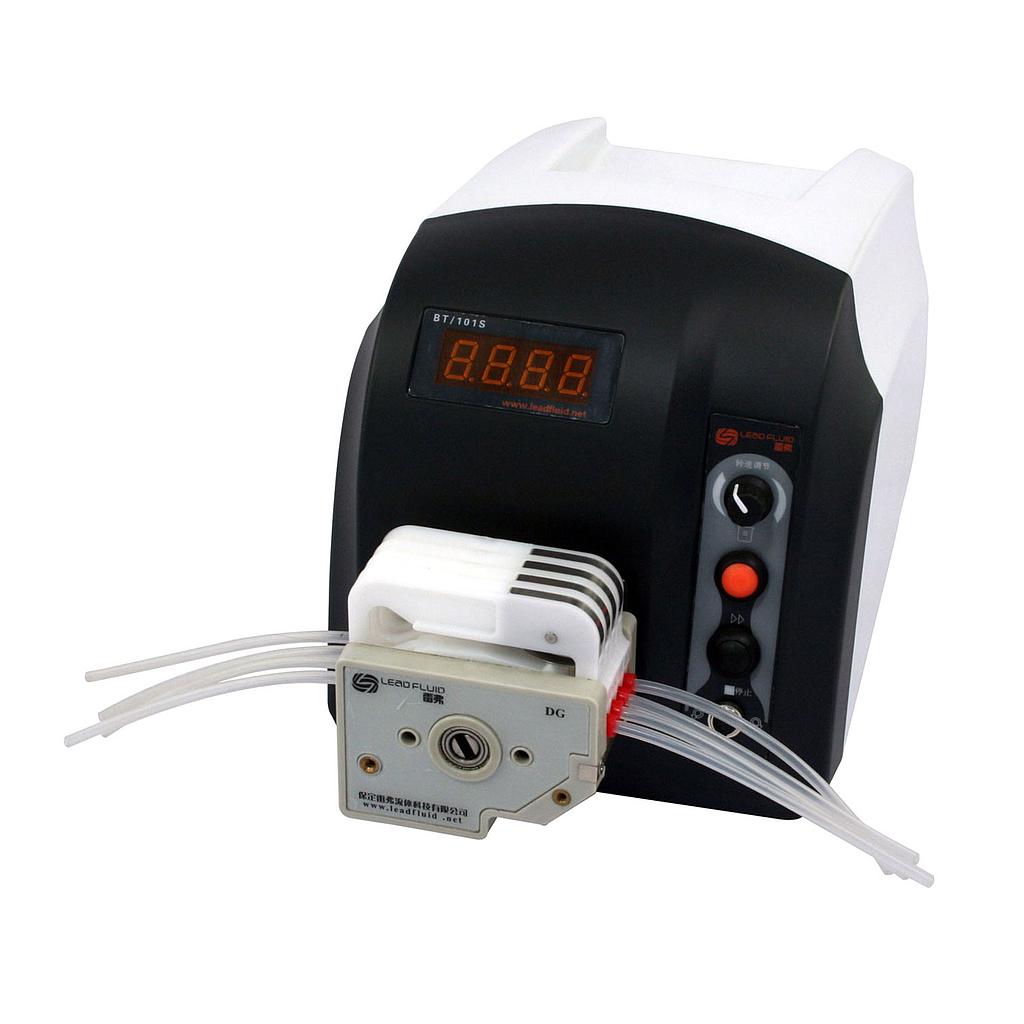

Leadfluid BT101S Basic Variable-Speed Peristaltic Pump (0.0001～41mL/min, 4 CH)

Name: Leadfluid BT101S Basic Variable-Speed Peristaltic Pump (0.0001～41mL/min, 4 CH)
Brand: Leadfluid
Availability: OutOfStock

ModelBT101S

P/NBT101S(DG10-4)

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Specifications

Flow range: 0.0001～41 mL/min

Speed range: 0.1-150 rpm

Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution

Speed accuracy: 0.5%

Power supply: AC 100-240V, 50Hz/60Hz

Power consumption: < 30W

External logic level control signal: 5V, 12V (standard), 24V (optional).

External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)

Communication interface: RS485 MODBUS

Operating condition: Temperature 0~40°C; Relative humidity <80%

IP grade: IP31

Dimensions (L x W x H): 261 x 180 x 197 mm (10.2 x 7.1 x 7.8 inch)

Weight: 4.5 kg (10 lbs)
