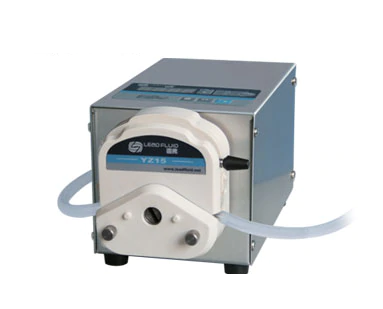

Leadfluid BT102S Basic Variable-Speed Peristaltic Pump (0.006～280ml/m, 1 CH)

Specifications

Pump head: YZ15

Channel number: 1

Flow range: 0.006～280ml/min

• Flow accuracy:＜0.5%

• Speed range:0.1-100rpm.

• Speed resolution :0.1rpm

• Power supply :AC 220V±10%,50Hz/60Hz（standard）,

AC 110V±10%,50Hz/60Hz（optional）

• Power consumption：＜30W

• External control：Input electrical level 5V,12V(standard),24V(optional).

• External communication interface：RS485 communication interface

• Ambient temperature：0 ～ 40℃

• Relative humidity:＜80%

• IP grade:IP31

• Dimensions（LxWxH）218mmx127mmx122mm

• Weight：2.7 kg

Datasheet
