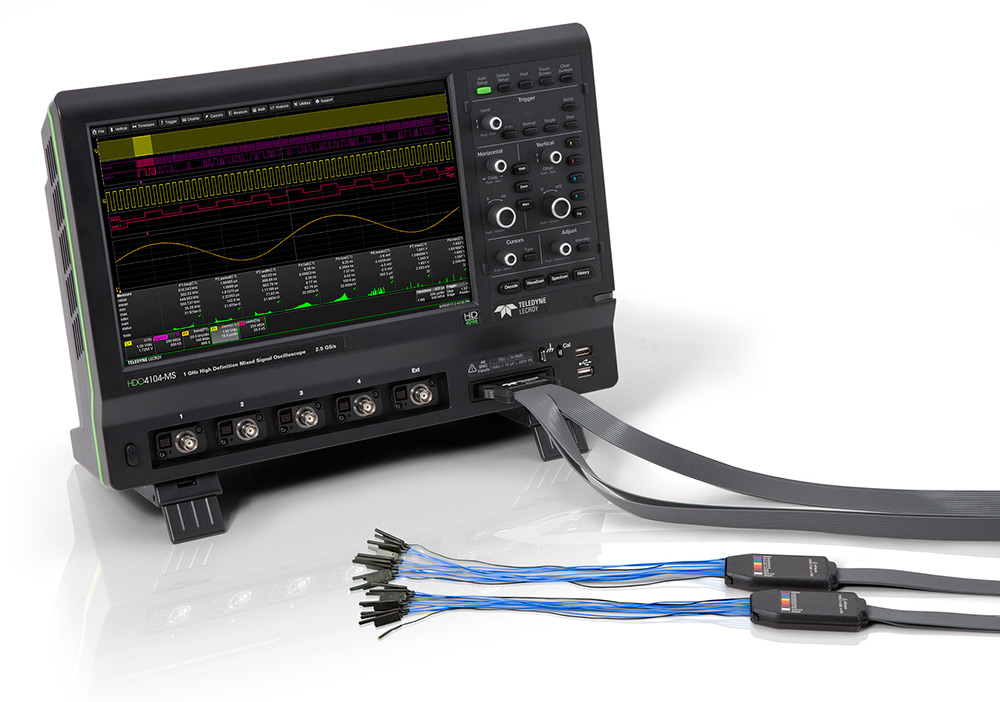

LeCroy HDO4032-MS Mixed Signal Oscilloscope (350 MHz, 2.5 GS/s, 2+16 Ch)

Name: LeCroy HDO4032-MS Mixed Signal Oscilloscope (350 MHz, 2.5 GS/s, 2+16 Ch)
Brand: LECROY

ManufacturerLECROY(View more products from this manufacturer)

ModelHDO4032-MS

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Vertical System
Rise time	1 ns
Bandwidth	350 MHz
Input Channels	2
Bandwidth Limiters	20 MHz, 200 MHz
Input Impedance	1 MΩ ± 2.0% \|\| 15 pF, 50 Ω ± 2.0%
Input Coupling	AC, DC, GND
Maximum Input Voltage	1 MΩ: 400 V max (DC + Peak AC ≤ 10 Khz), 50 Ω: 5 V_RMS
Channel-Channel Isolation	≥ 30 dB
Vertical Resolution	12 bits
Sensitivity	1 MΩ: 1 mV/div - 10 V/div 50 Ω: 1 mV/div - 1 V/div
DC Gain Accuracy	±(0.5%) Full Scale, offset at 0 V
Offset Range	50Ω +/-1.6V: 1mV/div-4.95mV/div +/-4V: 5mV/div-9.9mV/div +/-8V: 10mV/div-19.8mV/div +/-10V: 20mV/div-1V/div 1MΩ +/-1.6V: 1mV/div-4.95mV/div +/-4V: 5mV/div-9.9mV/div +/-8V: 10mV/div-19.8mV/div +/-16V: 20mV/div-100mV/div +/-80V: 102mV/div-198mV/div +/-160V: 200mV/div-1V/div +/-400V: 1.02V/div-10V/div

Horizontal System
Time/Division Range	200 ps/div - 1.25 ks/div with standard memory (up to 2.5 ks/div with -L memory); RIS available at <= 10 ns/div; Roll Mode available at >= 100 ms/div and <= 5 MS/s
Clock Accuracy	±2.5ppm for 5 to 40C + 1.0ppm/year from calibration
Trigger and Interpolator Jitter	4.0 ps (rms)

Acquisition System
Single-Shot Sample Rate/Ch	2.5 GS/s
Equivalent Sample Rate	125 GS/s
Memory	25 Mpts/Ch on 1 Ch 12.5 Mpts/Ch on 2 Ch

Acquisition Modes
Averaging	Up to 1,000,000
Peak Detect	na
Interpolation	Linear, Sin x/x
Enhanced Resolution	Up to 15 bits
Sequence Mode	Up to 10,000 segments

Digital - Vertical and Acquisition
Input Channels	16
Threshold Groupings	Pod 2: D15 - D8, Pod 1: D7 - D0
Threshold Selections	TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined
Maximum Input Voltage	±30V Peak
Threshold Accuracy	±(3% of threshold setting + 100mV)
Input Dynamic Range	±20V
Minimum Input Voltage Swing	400mV
Input Impedance (Flying Leads)	100 kΩ \|\| 5 pF
Maximum Input Frequency	250 MHz
Sample Rate	1.25 GS/s
Record Length	Standard STD: 25MS - 16 Channels Optional -L: 50MS - 16 Channels
Minimum Detectable Pulse Width	2 ns
Channel-to-Channel Skew	350ps
User defined threshold range	±10V in 20mV steps
User defined hysteresis range	100 mV to 1.4 V in 100 mV steps

Triggering System
Modes	Normal, Auto, Single, Stop
Sources	Ch 1 - Ch 4, EXT, EXT/10, AC Line
Coupling Mode	AC, DC, LF Rej, HF Rej
Pre-trigger Delay	0 - 100% Full Scale
Post-trigger Delay	0 - 10,000 Divisions
Hold-off by Time or Events	2 ns up to 20s
Internal Trigger Range	±4.1 Divisions
Trigger Sensitivity	0.9 division: 10 MHz 1.0 divisions: 200 MHz 2.0 divisions: 350 MHz
External Trigger Sensitivity	0.9 division: 10 MHz 1.0 divisions: 200 MHz 2.0 divisions: 350 MHz
External Trigger Input Range	Ext: ±0.4 V, EXT/10: ±4.0 V

Display
Type	Color Touch Screen 12.1" TFT-LCD
Resolution	1280 x 800
Grid Styles	YT, XY

Trigger Types
Standard Triggers	Edge, Glitch, Width, Logic (Pattern), TV (NTSC, PAL, SECAM, HDTV), Runt, Slew Rate, Interval, Dropout, Qualified
Optional Advanced Triggers	na
Optional Serial Data Triggers	I²C, SPI, UART/RS-232, CAN, LIN, FlexRay, SENT, MIL-STD-1553, ARINC 429, Audio (I²S, LJ, RJ, TDM), USB, USB-HSIC, MIPI D-PHY, DigRF3G

Internal Storage
Waveform Storage	4 memory waveforms plus internal HDD
Setup Storage	6 setups

Math
Number of Math Traces	2
Standard Math Functions	Add, Subtract, Multiply, Divide, FFT, Absolute Value, Averaging (summed and continuous), Derivative, Envelope, Enhanced Resolution, Floor, Integral, Invert, Reciprocal, Rescale, Roof, Square, Square Root, Trend, Zoom
Optional Math Functions	na

Measurements
Number of Measurements Displayed	8
Measurement Parameters	Amplitude, Area, Base, Delay, Delta Period @ Level, Delta Time @ Level, Duty Cycle, Duty @ Level, Edge @ Level, Fall Time (90% - 10%), Fall Time (80% - 20%), Frequency, Frequency @ Level, Maximum, Mean, Minimum, Overshoot+, Overshoot-, Period, Peak-Peak, Period, Period @ Level, Phase, Rise Time (10% - 90%), Rise Time (20% - 80%), RMS, Skew, Standard Deviation, Time @ Level, Top, Width+, Width-

Interface
GPIB Port (optional)	1 (optional)
USB (Device)	1
Ethernet Port	1
USB (Host)	6
Serial Port	0

Probes
Probes	Qty. (4) ÷10 Passive Probes
Scale Factors	Automatic/Manual: ÷1, ÷10, ÷20, ÷100, ÷200, ÷1000, ÷2000, ÷10000 Variable: (÷1x10^-6 - ÷10000)
Calibration Output	1 kHz square wave, 1.0 Vp-p, output to probe hook

Power Requirements
Voltage	90 - 264 VAC, 45 HZ - 66 Hz 90 - 132 VAC, 380 HZ - 420 Hz
Max. Power Consumption	330 VA

Environmental and Safety
Temperature (Operating)	5 °C to 40 °C
Temperature (Non-Operating)	-20 °C to 60 °C
Humidity (Operating)	80% RH, 31 °C 50% RH, 40 °C
Humidity (Non-Operating)	95% RH
Altitude (Operating)	3,048 m max at <=30C
Altitude (Non-Operating)	12,192 m

Physical Dimensions
Dimensions (HWD)	291.7 mm x 399.4 mm x 131.31 mm (11.48" x 15.72" x 5.17")
Weight	5.86 kg. (12.9 lbs.)

Warranty and Service
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty and calibration services.
