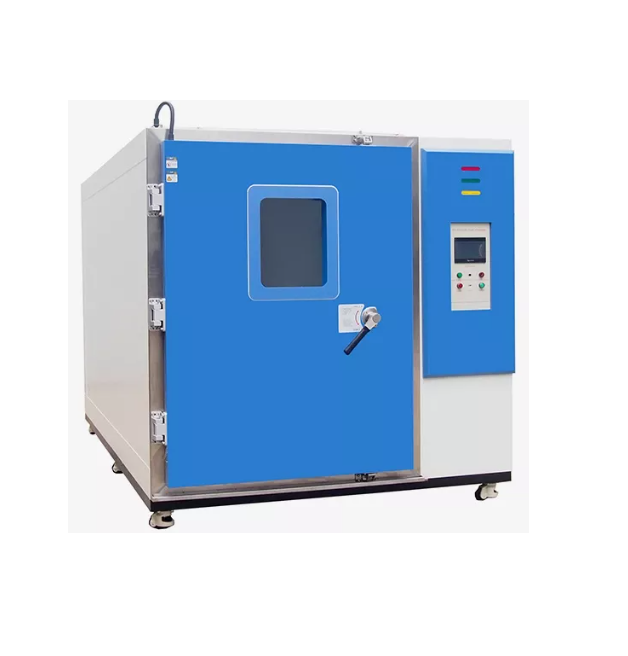

LIB DHPV-04 Environmental Test chamber for PV Solar Panel (-60℃ ～ +100 ℃)

Temperature Range: -60℃ ～ +100 ℃

Temperature Fluctuation: ± 0.5 ℃

Temperature Deviation: ± 2.0 ℃

Temperature Change Rate: 1 ~ 3.4℃ / Min

Humidity Range: 20% ~ 98% RH

Humidity Deviation: ± 2.5% RH

Panel Size: 1M*2M

Panel Capacity: 4 / 6 / 8 / 10 / 12 Pieces

Cooling system: Mechanical compression refrigeration system

Refrigerating unit: French TECUMSEH compressor

Controller: Programmable color LCD touch screen controller, Ethernet connection

Water supply system: Automatic water supply

Safety Device: Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection

Exterior Material: Steel Plate with protective coating

Interior Material: SUS304 stainless steel

Thermal Insulation: Polyurethane foam and insulation cotton

Observation Window: Interior lighting, double-layer thermo stability silicone rubber sealing

Standard: IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345

Advantages

1. Integrated Thermal, Humidity-Freeze, and Damp Heat Testing for PV Modules: The chamber supports full-cycle PV module testing, including thermal cycling (–40 °C to +85 °C), humidity-freeze cycling (85 % RH, –40 °C to +85 °C), and damp heat testing (85 °C/85 % RH). This integrated capability allows engineers to evaluate mechanical, electrical, and encapsulation reliability in a single unit, eliminating the need for multiple test systems.

2. High-Precision Control for Repeatable Results: Equipped with PT-100 Class A temperature sensors and PID controllers, the chamber maintains temperature within ±2 °C and humidity within ±2.5 % RH. Uniform airflow and calibrated sensors ensure that each PV module experiences the same conditions, guaranteeing consistent, traceable, and audit-ready test data for R&D, QA, and certification purposes.

3. Large Capacity and Flexible Sample Handling: The chamber accommodates panels up to 2 m(customized) in size, with adjustable racks supporting more than two modules per run. Customizable holders, cable holes, and vertical mounting options allow secure placement of various PV types.

4. Energy-Efficient, Eco-Friendly Operation: Advanced compressor-based cooling and intelligent humidification systems provide rapid temperature transitions and stable humidity control while reducing energy and water consumption. Automatic condensation recycling and low-water alarms ensure uninterrupted long-term damp heat tests up to 1000 hours, supporting sustainable lab practices.

5. Safe, Durable, and User-Friendly Design: Built with SUS304 stainless steel interiors and powder-coated A3 steel exteriors, the chamber resists corrosion, chemical exposure, and mechanical wear. Safety features include over-temperature/pressure protection, fail-safe power shutdowns, and insulated observation windows. A multilingual touchscreen interface allows intuitive programming of thermal, humidity-freeze, and damp heat cycles for quick setup and monitoring.
